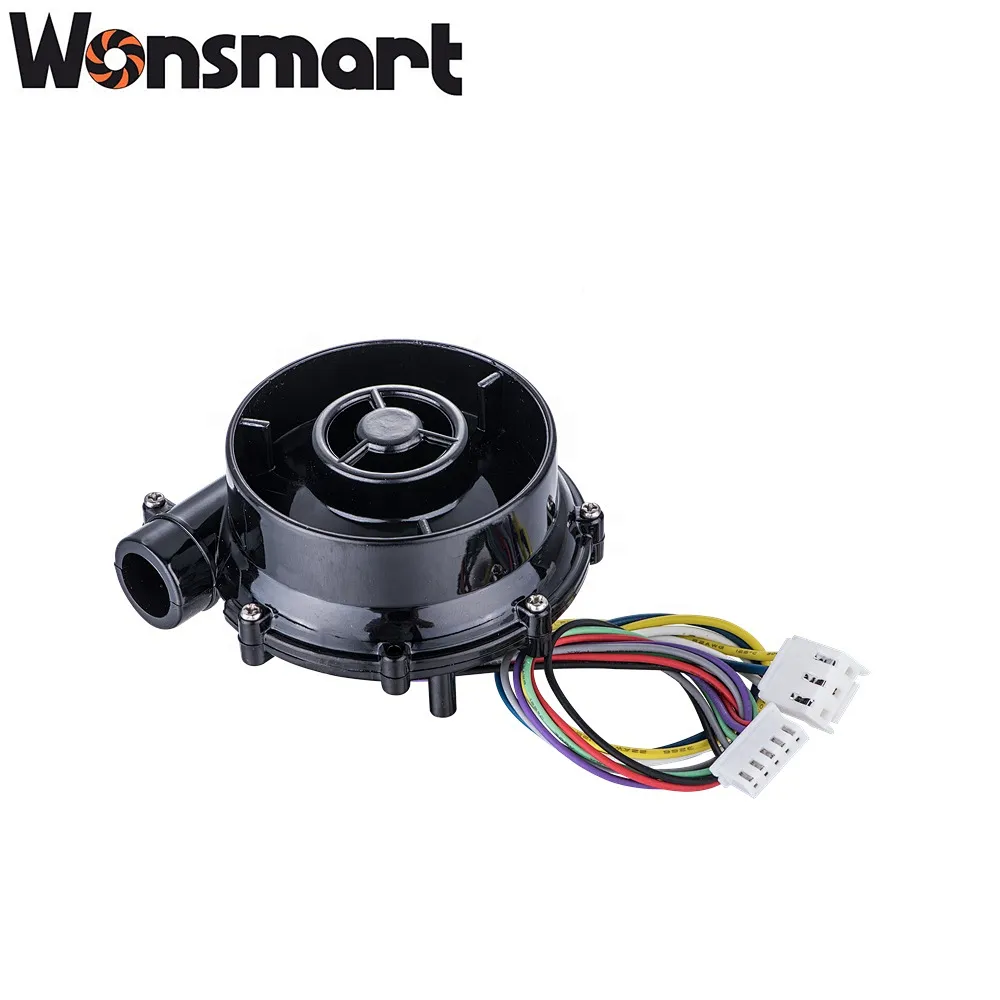

12VDC Mini Centrifugal Air Blower Fan
WS7040-12-X200N
Keep your space ventilated and cool with our 12VDC Mini Centrifugal Air Blower Fan! Compact and efficient, it’s perfect for a variety of applications.
Quantity
| Brand name: Wonsmart | Certification: ce, RoHS, ETL |
| 12VDC Mini Centrifugal Air Blower Fan | Warranty: 1 Year |
| Blower type: Centrifugal fan | After-sales Service Provided: Online support |
| Voltage: 12 vdc | Life time(MTTF): >20,000hours (under 25 degree C) |
| Bearing: NMB ball bearing | Weight: 78 grams |
| Applicable Industries: Manufacturing Plant | Unit size: D70mm *H40mm |
| Electric Current Type: DC | Motor type:Three Phase DC Brushless Motor |
| Mounting: Ceiling Fan | Controller: external |
| Place of Origin:Zhejiang, China | Static pressure: 6kPa |
 |  |

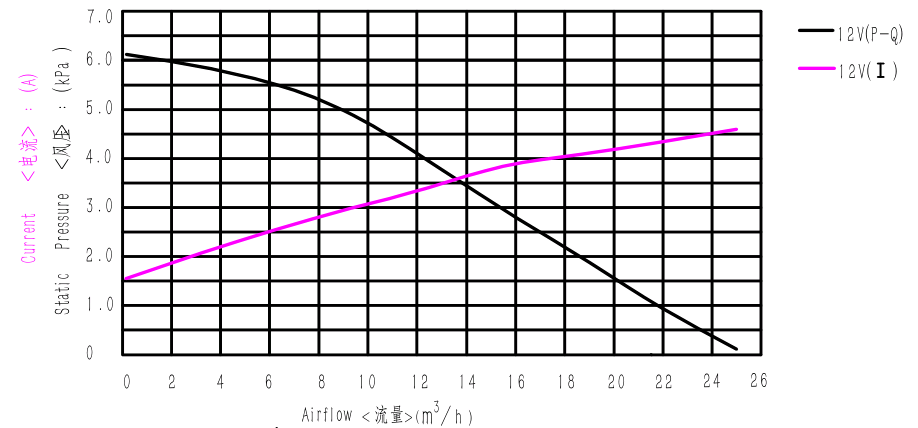

WS7040-12-X200N blower can reach maximum 25m³/h airflow at 0 kpa pressure and maximum 6kpa static pressure. It has maximum output air power when this blower run at 3kPa resistance if we set 100% PWM. It has maximum efficiency when this blower run at 6kPa resistance if we set 100% PWM. Other load point performance refer to below P-Q curve：
(1)WS7040-12-X200 blower is with brushless motors and NMB ball bearings inside which indicates very long life time; MTTF of this blower can reach more than 20,000 hours at 20 degree C environmental temperature.
(2)This air blower centrifugal fan needs no maintence
(3)This air blower centrifugal fan drived by a brushless motor controller have many different control functions such as speed regulation,speed pulse output,fast acceleration, brake etc.it can be controlled by intelligent machine and equipment easily
(4)Drived by brushless motor driver the blower will have over current, under/over voltage,stall protections.
Our 12VDC air blower centrifugal fan is a powerful and compact tool for keeping your space cool and well-ventilated. With its centrifugal design, air blower centrifugal fan can quickly and efficiently circulate air, making it perfect for use in small rooms, workshops, or even in your car or truck. The sturdy aluminum housing is built to last, and the high-quality motor ensures smooth and reliable operation. Whether you need to keep cool during the hot summer months or simply want to improve air circulation in your space, our 12VDC air blower centrifugal fan is up to the task. So why wait? Order yours today and start enjoying a more comfortable and refreshing environment!
