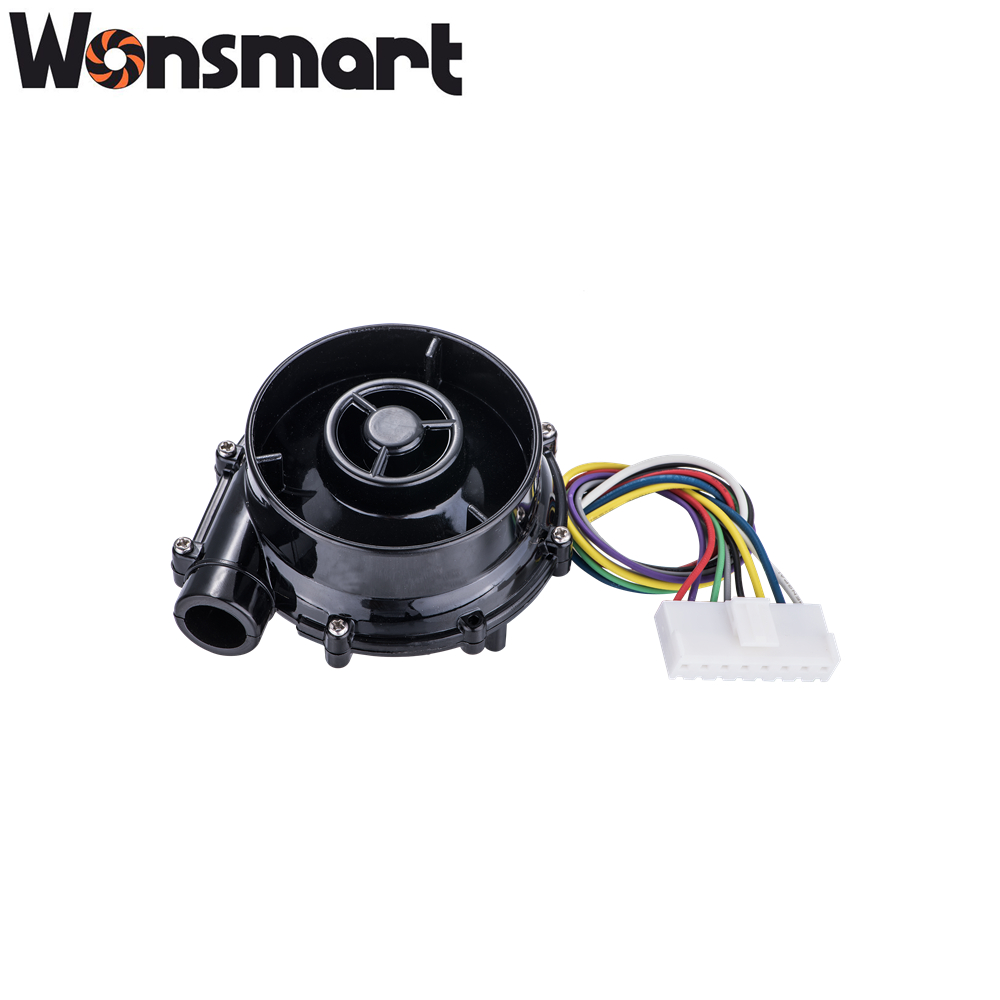

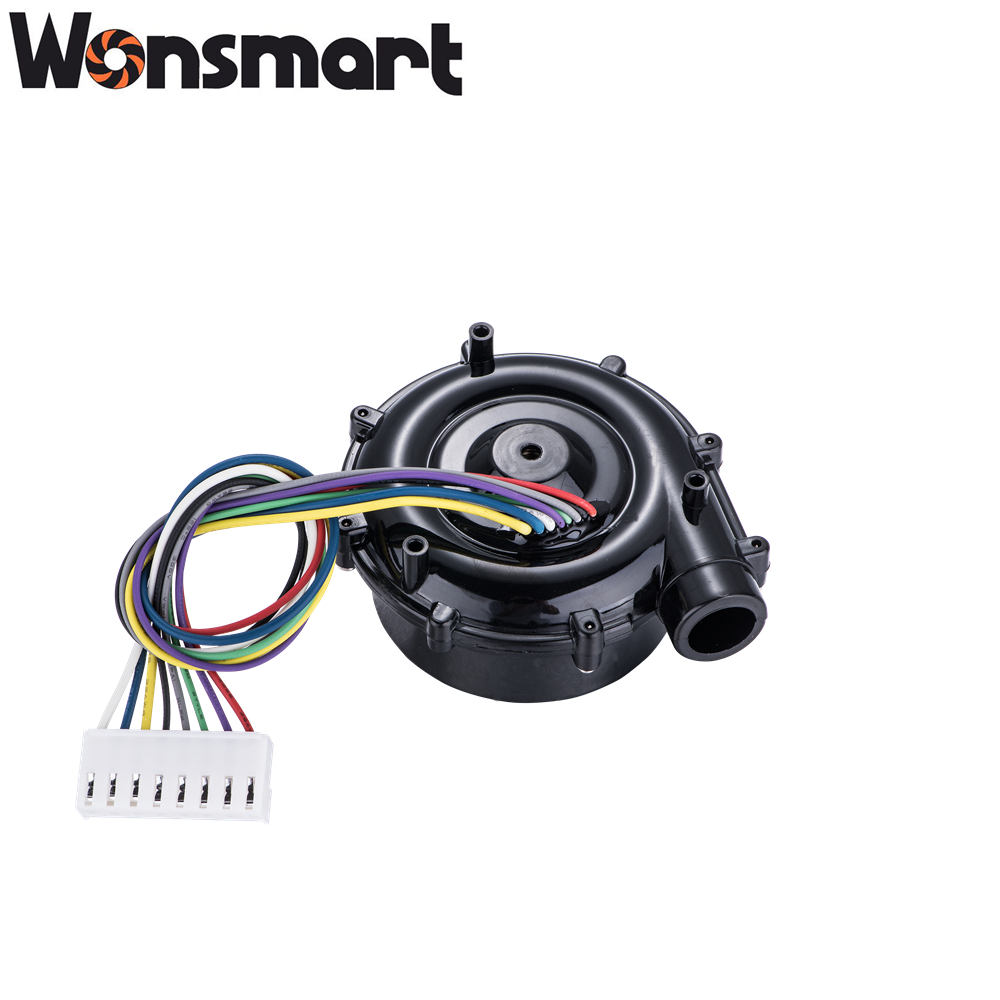

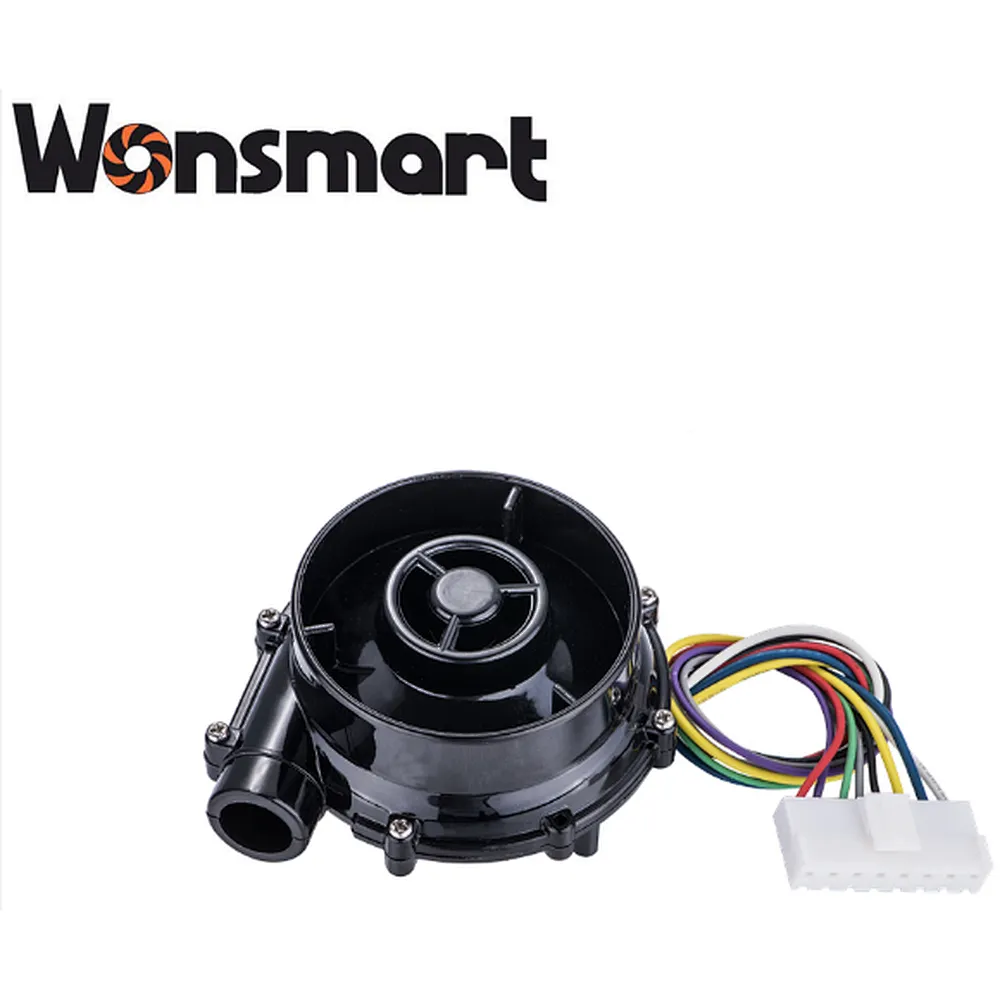

24V Mini Centrifugal Air Blower Fan
WS7040-24-V200
This mini blower fan is powered by 24V DC, compact size, high air flow rate and low noise, ideal for cooling and ventilation purposes.
Quantity
| Brand name: Wonsmart | Certification: ce, RoHS, ETL |
| 24V Mini Centrifugal Air Blower Fan | Warranty: 1 Year |
| Blower type: Centrifugal fan | After-sales Service Provided: Online support |
| Voltage: 24 vdc | Life time(MTTF): >20,000hours (under 25 degree C) |
| Bearing: NMB ball bearing | Weight: 78 grams |
| Applicable Industries: Manufacturing Plant | Unit size: D70mm *H40mm |
| Electric Current Type: DC | Motor type:Three Phase DC Brushless Motor |
| Mounting: Ceiling Fan | Controller: external |
| Place of Origin:Zhejiang, China | Static pressure: 6.5kPa |
 |  |

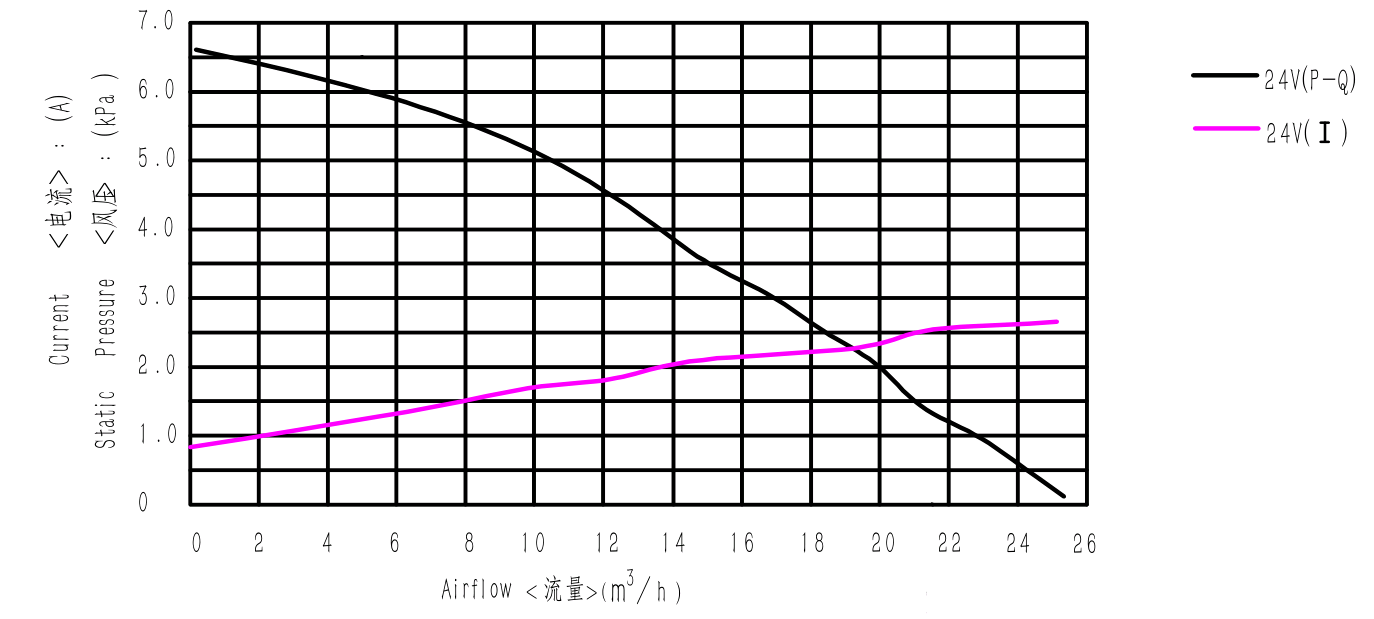

WS7040-24-V200 blower can reach maximum 25.5m³/h airflow at 0 kpa pressure and maximum 6.5kpa static pressure. It has maximum output air power when this blower run at 3kPa resistance if we set 100% PWM. It has maximum efficiency when this blower run at 6.5kPa resistance if we set 100% PWM. Other load point performance refer to below P-Q curve：
(1)WS7040-24-V200 blower is with brushless motors and NMB ball bearings inside which indicates very long life time; MTTF of this blower can reach more than 20,000 hours at 20 degree C environmental temperature.
(2)This air blower centrifugal fan needs no maintence
(3)This air blower centrifugal fan drived by a brushless motor controller have many different control functions such as speed regulation,speed pulse output,fast acceleration, brake etc.it can be controlled by intelligent machine and equipment easily
(4)Drived by brushless motor driver the blower will have over current, under/over voltage,stall protections.
This 24V Mini Centrifugal Air Blower Fan is designed with a compact size and high air flow rate, ideal for small-scale cooling and ventilation purposes. It also features a low noise level of only 70db, ensuring a quiet and comfortable environment. The fan is made of high-quality plastic material, durable and lightweight. Its working temperature range extends from -25℃ to 60℃, making it suitable for use in a wide range of environments. This blower fan is easy to install and requires minimal maintenance, making it a perfect choice for car ventilation systems, small HVAC systems, and cooling solutions in server rooms and electronic equipment. With its powerful and efficient performance, this mini centrifugal air blower fan can help solve temperature control and air flow issues in various situations.
