48VDC Brushless Mini Fuel Cell Turbine Machine Blower
WS155150-48-150-X300
This turbine blower offers high performance with 380m³/h air flow and speed levels from 12000rpm-15000rpm, while using a current level of only 5A-12.5A.
Quantity
| Brand name: Wonsmart | Certification: CE, RoHS, ETL,REACH |
| 48VDC Brushless Mini Fuel Cell Turbine Machine Blower | Warranty: 1 Year |
| Blower type: Centrifugal fan | After-sales Service Provided: Online support |
| Voltage: 48 vdc | Life time(MTTF): >20,000hours (under 25 degree C) |
| Bearing: NMB ball bearing | Weight: 1.5 kgs |
| Applicable Industries: Manufacturing Plant | Unit size: D155mm *H150mm |
| Electric Current Type: DC | Motor type:Three Phase DC Brushless Motor |
| Mounting: Ceiling Fan | Controller: external |
| Place of Origin:Zhejiang, China | Static pressure: 6kPa |
 |  |

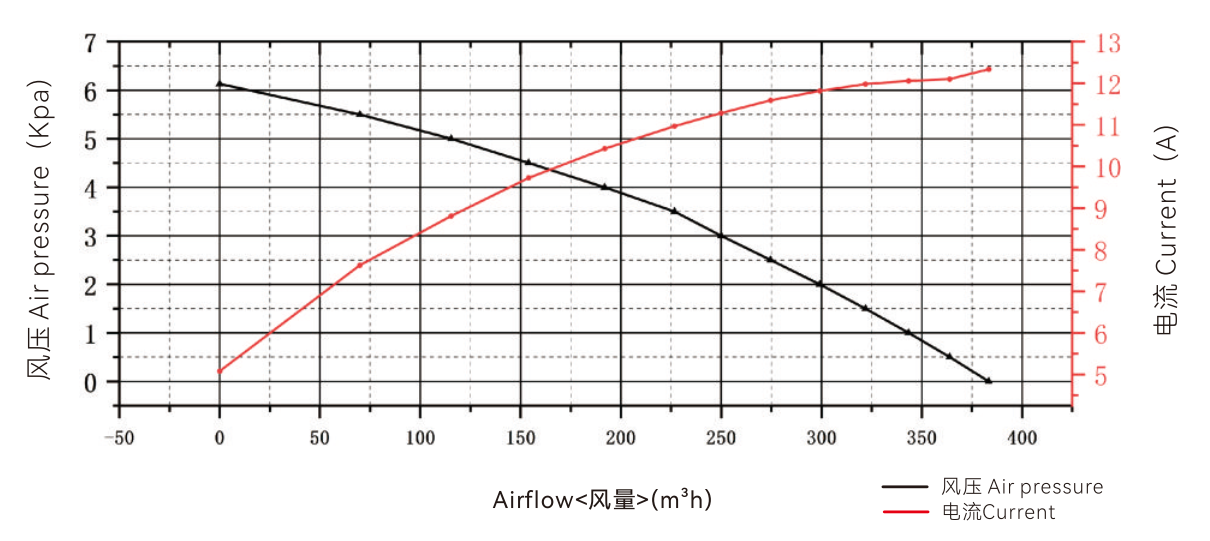

WS155150-48-150-X300 small size air blower can reach maximum 380m³/h airflow at 0 kpa pressure and maximum 6kpa static pressure. It has maximum output air power when this blower run at 6kPa resistance if we set 100% PWM. small size air blower has maximum efficiency when this blower run at 6kPa resistance if we set 100% PWM. Other load point performance refer to below P-Q curve：
(1)WS155150-48-150-X300 blower is with brushless motors and NMB ball bearings inside which indicates very long life time; MTTF of this blower can reach more than 20,000 hours at 20 degree C environmental temperature.
(2)This fuel cell turbine machine needs no maintence

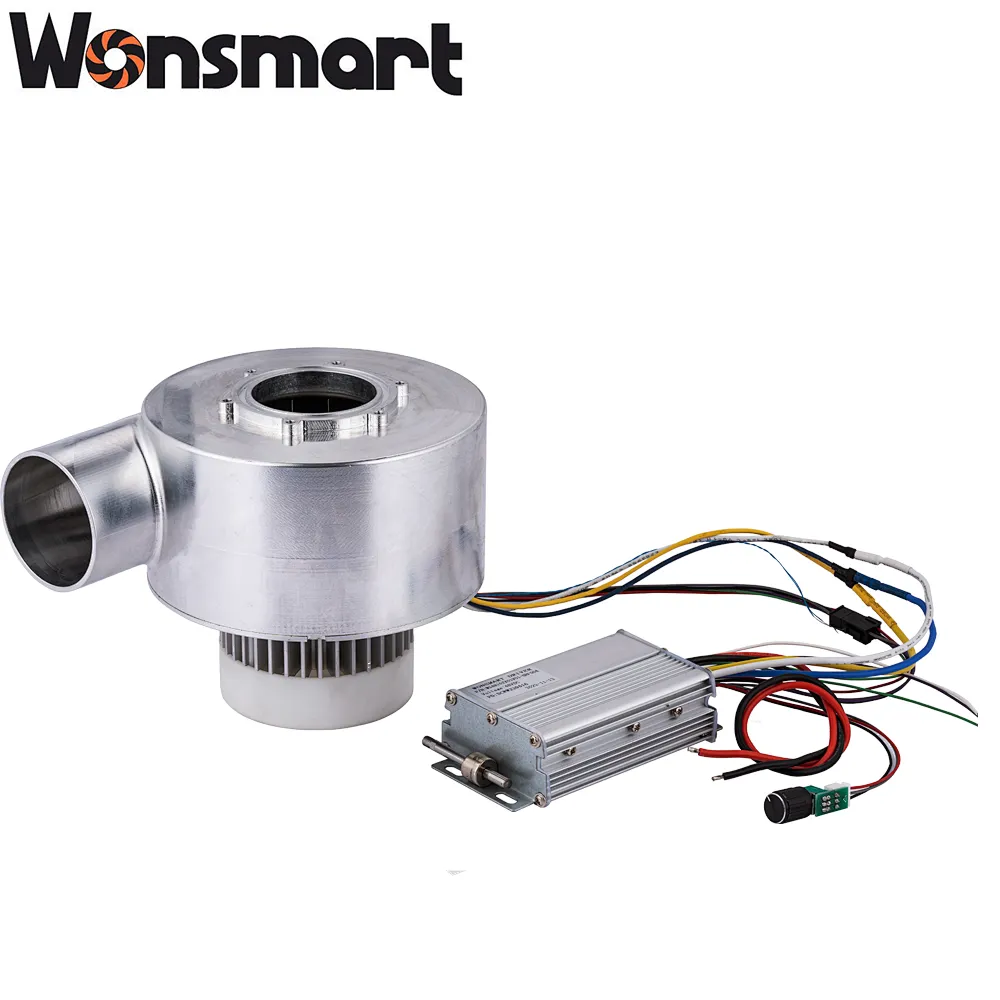

(3)This 48vdc turbine blower drived by a brushless motor controller have many different control functions such as speed regulation,speed pulse output,fast acceleration, brake etc. small size air blower can be controlled by intelligent machine and equipment easily
(4)Drived by brushless motor driver the blower will have over current, under/over voltage,stall protections.
This 48VDC Brushless Mini Fuel Cell Turbine Machine Blower is a versatile and efficient solution for various air moving applications. With an impressive 380m³/h air flow, speed levels ranging from 12000rpm-15000rpm, and a current level of only 5A-12.5A, this blower provides high performance and energy-efficient operation. The brushless design minimizes wear and makes maintenance a breeze. The compact size and lightweight construction make it easy to install, operate, and transport. This turbine blower can be used in a range of applications including HVAC systems, air circulation, air supply systems, and more. By utilizing this blower, users can achieve better air quality, circulation, and comfort. The efficient operation also reduces energy consumption and costs. With its high performance, compact size, and brushless design, this turbine blower is a reliable and effective solution for industrial and commercial air moving needs.
