dc brushless centrifugal blower for CPAP
WS7050-24-V200
This blower delivers quiet and efficient air flow for optimal CPAP therapy. With its brushless motor technology, it boasts longer life and less maintenance.
Quantity
| Brand name: Wonsmart | Certification: CE, RoHS, ETL,REACH |
| High pressure with dc brushless motor | Warranty: 1 Year |
| Blower type: Centrifugal fan | After-sales Service Provided: Online support |
| Voltage: 24 vdc | Life time(MTTF): >20,000hours (under 25 degree C) |
| Bearing: NMB ball bearing | Weight: 220 grams |
| Type: Centrifugal Fan | Housing material:PC |
| Applicable Industries: Manufacturing Plant | Unit size: D70mm *H50mm |
| Electric Current Type: DC | Motor type:Three Phase DC Brushless Motor |
| Mounting: Ceiling Fan | Controller: external |
| Place of Origin:Zhejiang, China | Static pressure: 5kPa |
 |  |

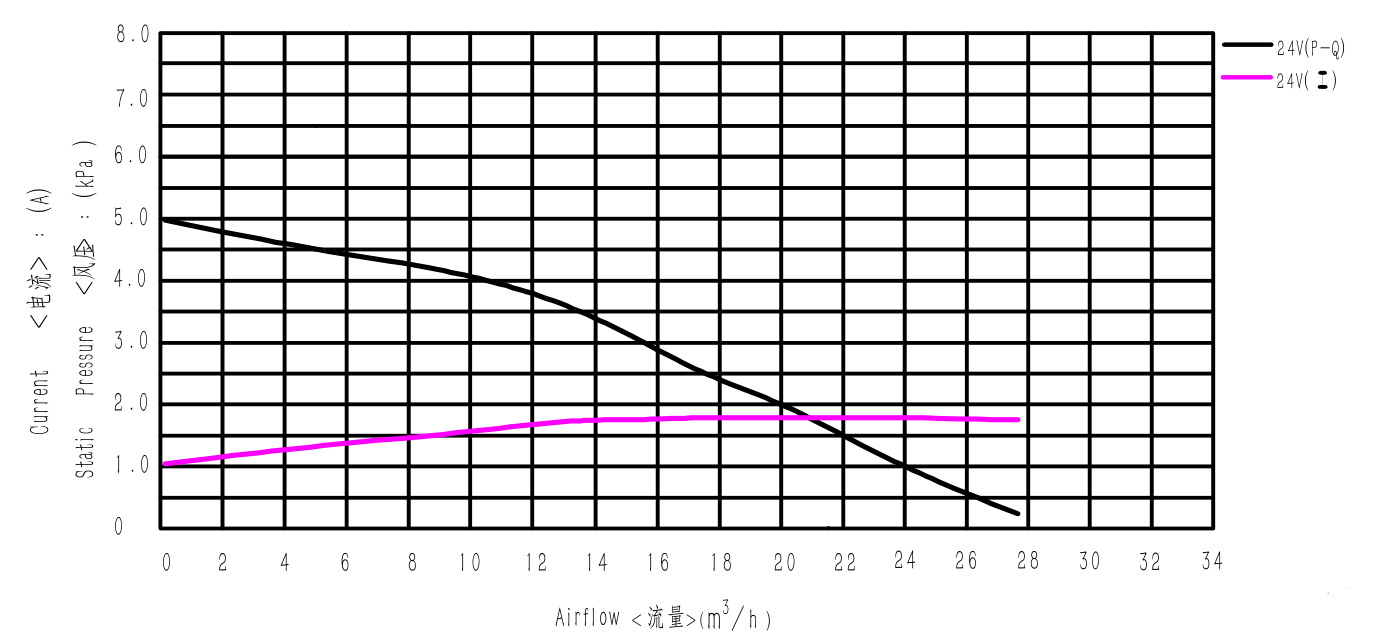

WS7050-24-V200 blower can reach maximum 28m³/h airflow at 0 kpa pressure and maximum 5.0kpa static pressure. It has maximum output air power when this blower run at 3kPa resistance if we set 100% PWM. It has maximum efficiency when this blower run at 5.0kPa resistance if we set 100% PWM. Other load point performance refer to below P-Q curve：
(1)WS7050-24-V200 blower is with brushless motors and NMB ball bearings inside which indicates very long life time; MTTF of this blower can reach more than 20,000 hours at 20 degree C environmental temperature.
(2)This blower motor needs no maintence
(3)This blower motor drived by a brushless motor controller have many different control functions such as speed regulation,speed pulse output,fast acceleration, brake etc.it can be controlled by intelligent machine and equipment easily
(4)Drived by brushless motor driver the blower will have over current, under/over voltage,stall protections.
Our DC Brushless Centrifugal Blower for CPAP is an essential component for sleep apnea patients using continuous positive airway pressure (CPAP) therapy. With CPAP blower's innovative brushless motor technology, this blower provides a more efficient and quieter air flow for a more restful sleep experience. The motor is designed for longer life and less maintenance, so patients can have peace of mind knowing that their CPAP equipment is running smoothly and reliably. This blower is compatible with most CPAP machines and offers multiple usage scenarios depending on the specific needs of the user. Whether it's for home use, travel, or outdoor activities, this blower can be an advantageous addition to any CPAP setup. With CPAP blower's benefits of reduced noise levels, enhanced comfort, and energy efficiency, the DC Brushless Centrifugal Blower for CPAP proves to be a valuable investment for improving the quality of sleep for those with sleep apnea.
