fast portable inflation blower for air bed
WS9260-24-250-X200
Inflate your airbed effortlessly - the portable and speedy inflation blower.
Quantity
| Brand name: Wonsmart | Certification: CE, RoHS, ETL,REACH |
| High pressure with dc brushless motor | Warranty: 1 Year |
| Blower type: Centrifugal fan | After-sales Service Provided: Online support |
| Voltage: 24 vdc | Life time(MTTF): >20,000hours (under 25 degree C) |
| Bearing: NMB ball bearing | Weight: 420 grams |
| Type: Centrifugal Fan | Housing material:PC |
| Applicable Industries: Manufacturing Plant | Unit size: D92mm *H60mm |
| Electric Current Type: DC | Motor type:Three Phase DC Brushless Motor |
| Mounting: Ceiling Fan | Controller: external |
| Place of Origin:Zhejiang, China | Static pressure: 7.5kPa |
 |  |

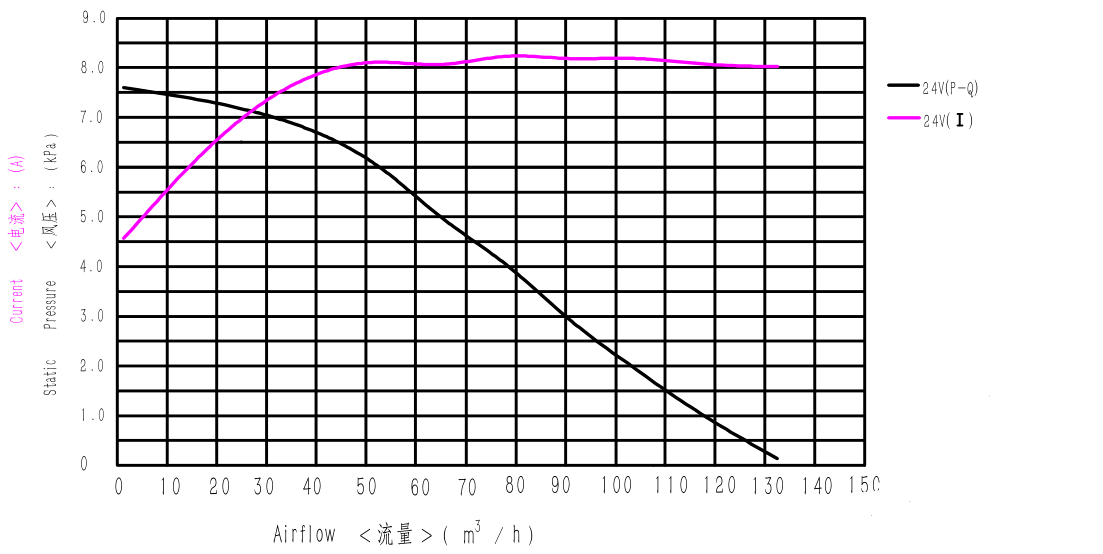

WS9260-24-250-X200 blower can reach maximum 130m³/h airflow at 0 kpa pressure and maximum 7.5kpa static pressure. It has maximum output air power when this blower run at 3kPa resistance if we set 100% PWM. It has maximum efficiency when this blower run at 7.5kPa resistance if we set 100% PWM. Other load point performance refer to below P-Q curve：
(1)WS9260-24-250-X200 blower is with brushless motors and NMB ball bearings inside which indicates very long life time; MTTF of this blower can reach more than 20,000 hours at 20 degree C environmental temperature.
(2)This Inflation Blower needs no maintence
(3)This Inflation Blower drived by a brushless motor controller have many different control functions such as speed regulation,speed pulse output,fast acceleration, brake etc.it can be controlled by intelligent machine and equipment easily
(4)Drived by brushless motor driver the blower will have over current, under/over voltage,stall protections.
Wonsmart Inflation Blower is the perfect solution for inflating airbeds, mattresses, pools, and rafters quickly and easily. With its powerful motor, this durable and portable device can inflate your bed in just minutes. It comes with three nozzle attachments, so you can fit it to any air valve. The device is designed with user-friendliness and convenience in mind, so that it is straightforward to operate and store. It encourages maximum efficiency with minimum energy consumption.
