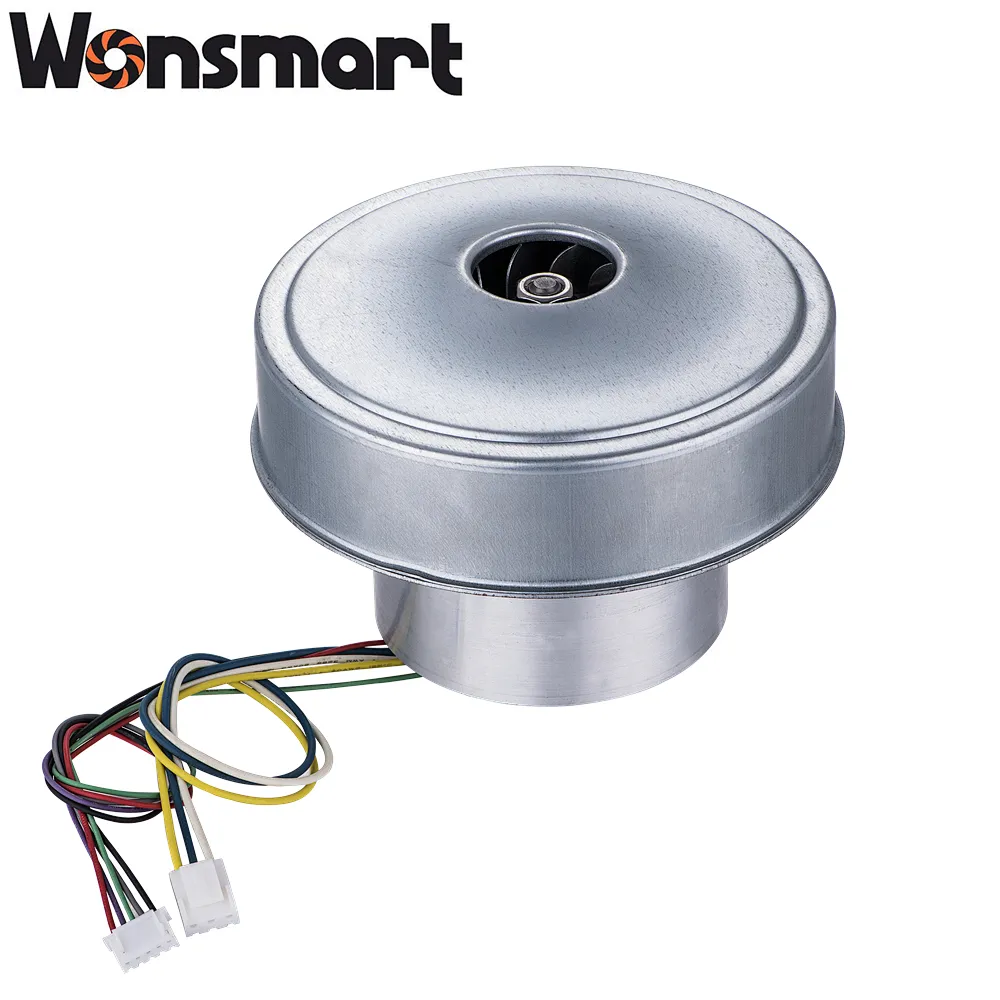

high speed centrifugal blower fan with brushless motor
WS130120S2-48-220-X300
This blower fan is equipped with a brushless motor and operates at high speeds, providing powerful and efficient air flow.
Quantity

| Brand name: Wonsmart | Certification: CE, RoHS, ETL,REACH |
| High speed centrifugal blower fan with brushless motor | Warranty: 1 Year |
| Blower type: Centrifugal fan | After-sales Service Provided: Online support |
| Voltage: 48 vdc | Life time(MTTF): >20,000hours (under 25 degree C) |
| Bearing: NMB ball bearing | Weight: 886 grams |
| Type: Centrifugal Fan | Housing material:PC |
| Applicable Industries: Manufacturing Plant | Unit size: D130mm *H120mm |
| Mounting: Ceiling Fan | Controller: external |
| Place of Origin:Zhejiang, China | Static pressure: 13kPa |
![]() | ![]() |




WS130120S2-48-220-X300 blower can reach maximum 140m3/h airflow at 0 kpa pressure and maximum 13kpa static pressure. It has maximum output air power when this blower run at 3kPa resistance if we set 100% PWM. It has maximum efficiency when this blower run at 13kPa resistance if we set 100% PWM. Other load point performance refer to below P-Q curve:

(1)WS130120S2-48-220-X300 blower is with brushless motors and NMB ball bearings inside which indicates very long life time; MTTF of this blower can reach more than 20,000 hours at 20 degree C environmental temperature.
(2)This high speed blower fan needs no maintence
(3)This high speed blower fan drived by a brushless motor controller have many different control functions such as speed regulation,speed pulse output,fast acceleration, brake etc.it can be controlled by intelligent machine and equipment easily
(4)Drived by brushless motor driver the blower will have over current, under/over voltage,stall protections.

The high speed blower fan with Brushless Motor is the perfect solution for anyone looking for powerful and efficient air flow. With its innovative brushless motor, this blower fan is able to operate at high speeds while consuming less energy than traditional blower fans. The high speed blower fan is also designed for longevity, reducing the need for maintenance and replacement. The centrifugal design of the fan allows for even more efficient air flow, making it perfect for a variety of applications, including HVAC systems, industrial equipment, and more. This blower fan is easy to install and operate, and offers a variety of speed and control options to suit any need. Whether you need to cool down a large industrial space or provide targeted ventilation in a specific area, this blower fan has you covered. With its advanced features and energy-efficient design, the High Speed Centrifugal Blower Fan with Brushless Motor is the perfect solution for anyone looking for powerful and efficient air flow.
