high speed ICU ventilator dc blower
WS8045-24-X200
This high speed ICU ventilator DC blower provides reliable and efficient ventilation for critically ill patients.
Quantity
| Brand name: Wonsmart | Certification: ce, RoHS, ETL |
| High speed ICU ventilator dc blower | Warranty: 1 Year |
| Blower type: Centrifugal fan | After-sales Service Provided: Online support |
| Voltage: 24 vdc | Life time(MTTF): >20,000hours (under 25 degree C) |
| Bearing: NMB ball bearing | Weight: 500 grams |
| Type: Centrifugal Fan | Housing material:PC |
| Applicable Industries: Manufacturing Plant | Unit size: D80mm *H45mm |
| Electric Current Type: DC | Motor type:Three Phase DC Brushless Motor |
| Mounting: Ceiling Fan | Controller: external |
| Place of Origin:Zhejiang, China | Static pressure: 15.7kPa |
 |  |

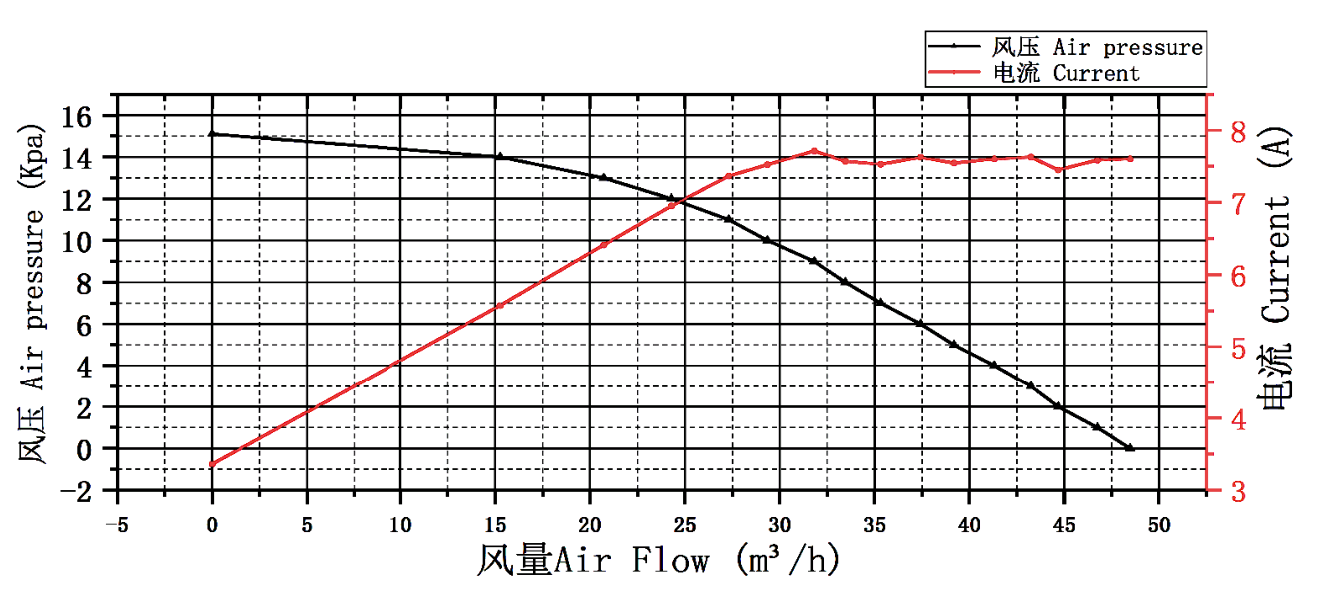

WS8045-24-X200 blower can reach maximum 47m³/h airflow at 0 kpa pressure and maximum 15.7kpa static pressure. It has maximum output air power when this blower run at 3kPa resistance if we set 100% PWM. It has maximum efficiency when this blower run at 15.7kPa resistance if we set 100% PWM. Other load point performance refer to below P-Q curve：
(1)WS8045-24-X200 blower is with brushless motors and NMB ball bearings inside which indicates very long life time; MTTF of this blower can reach more than 20,000 hours at 20 degree C environmental temperature.
(2)This ventilator blower needs no maintence
(3)This ventilator blower drived by a brushless motor controller have many different control functions such as speed regulation,speed pulse output,fast acceleration, brake etc.it can be controlled by intelligent machine and equipment easily
(4)Drived by brushless motor driver the blower will have over current, under/over voltage,stall protections.
With its powerful and durable design, this high speed ICU ventilator DC blower ensures that patients receive the proper amount of oxygen during critical moments. The blower is equipped with advanced features such as variable speed control, easy-to-use touch screen interface, and multiple alarm settings to ensure patient safety. The ventilator is perfect for hospital wards, emergency rooms and ICUs. It solves issues like hypoxemia, hypoventilation and asthma. Its lightweight and portable design allow for easy transportation between rooms and its low noise emissions make for a more peaceful environment for patients and healthcare professionals alike. This device has been tested and approved in accordance with international guidelines for medical devices.
