24V 53m³/h mini BLDC Blower WS9290B For inflatble devices
WS9290B-24-220-X300
This mini BLDC blower is perfect for inflating a range of devices. It operates on 24V and can provide up to 53m³/h of air flow.
Quantity

| Brand name: Wonsmart | Certification: CE, RoHS, ETL,REACH |
| 24V 53m³/h mini BLDC Blower WS9290B For inflatble devices | Warranty: 1 Year |
| Blower type: Centrifugal fan | After-sales Service Provided: Online support |
| Voltage: 24 Vdc | Life time(MTTF): >20,000hours (under 25 degree C) |
| Bearing: NMB ball bearing | Weight: 490 grams |
| Applicable Industries: Manufacturing Plant | Unit size: D92mm *H90mm |
| Electric Current Type: DC | Motor type:Three Phase DC Brushless Motor |
| Mounting: Ceiling Fan | Controller: external |
| Place of Origin:Zhejiang, China | Static pressure: 14kPa |
![]() | ![]() |

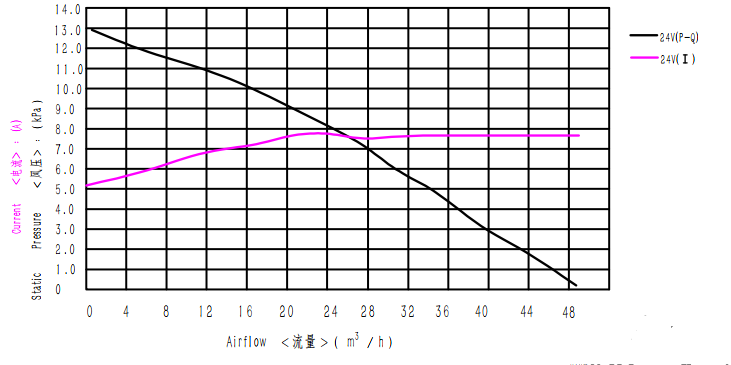

WS9290B-24-220-X300 blower can reach maximum55m³/h airflow at 0 kpa pressure and maximum14kpa static pressure.It has maximum output air power when this blower run at 7kPa resistance if we set 100% PWM, It has maximum efficiency when this blower run at 7kPa resistance if we set 100% PWM.Other load point performance refer to below P-Q curve:

(1)WS9290B-24-220-X300 blower is with brushless motors and NMB ball bearings inside which indicates very long life time; MTTF of this blower can reach more than 20,000hours at 20degree C environmental temperature.
(2)BLDC blower for 5kw fuel cell needs no maintence.
(3)BLDC blower for 5kw fuel cell drived by a brushless motor controller have many different control functions such as speed regulation,speed pulse output,fast acceleration, brake etc.it can be controlled by intelligent machine and equipment easily.
(4) Drived by brushless motor driver the blower will have over current, under/over voltage,stall protections.

The 24V 53m³/h mini BLDC blower WS9290B is a cost-effective and highly efficient solution for inflating a variety of devices.24v mini fan blower is designed with brushless DC motor technology, which allows it to offer long-lasting and maintenance-free performance. It operates on 24V and can provide up to 53m³/h of air flow, making it a great choice for inflatable devices requiring high-pressure air supply. One of the standout features of this mini blower is its compact size, which makes it easy to integrate into different systems. 24v mini fan blower low noise and vibration levels also contribute to its overall suitability for a range of different applications. With its high efficiency and energy-saving capabilities, the WS9290B blower can save users a significant amount of money on their electricity bills. This mini BLDC blower can be used in a variety of situations, from inflating airbeds and water toys to providing air supply for industrial machinery. It is an ideal choice for users looking for a reliable and long-lasting blower that requires minimal maintenance. Its compact size and low noise levels make it particularly useful for portable inflatable devices. Overall, the 24V 53m³/h mini BLDC blower WS9290B is a high-quality and versatile blower with a range of features that make it a great option for a variety of applications.
