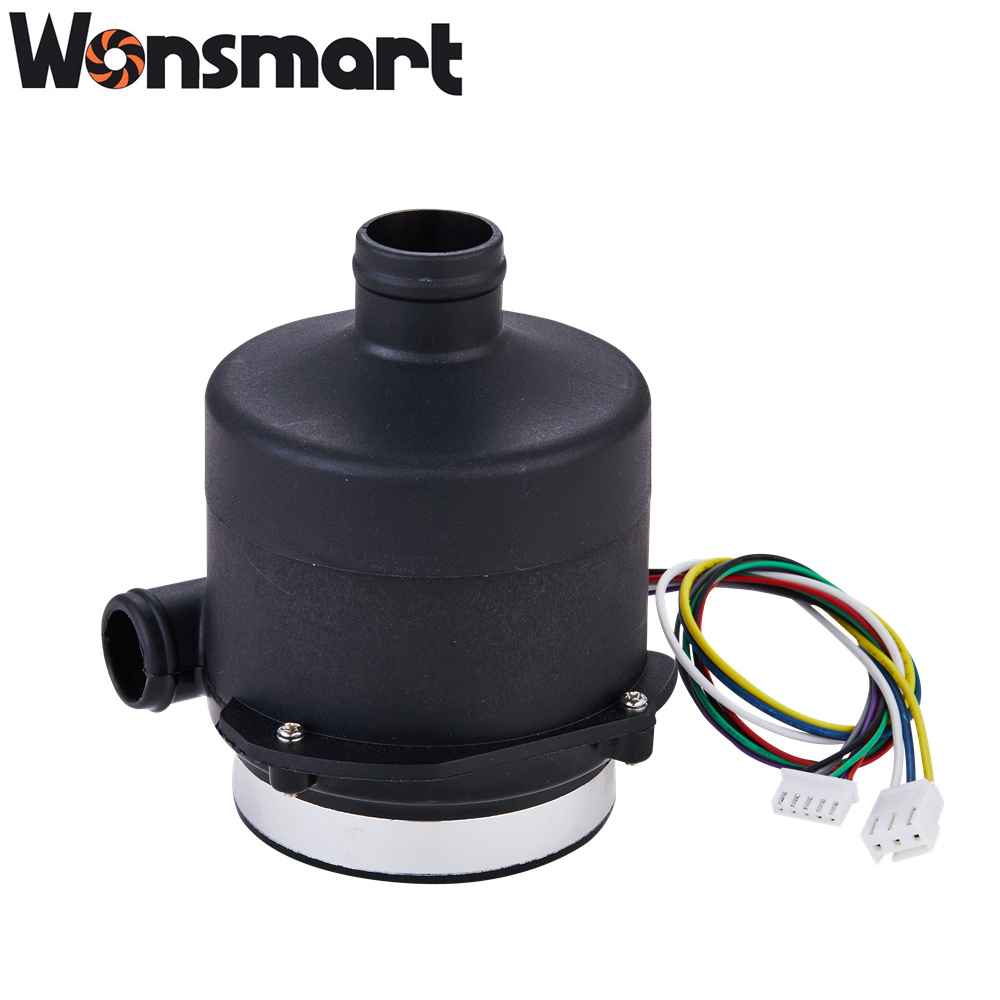

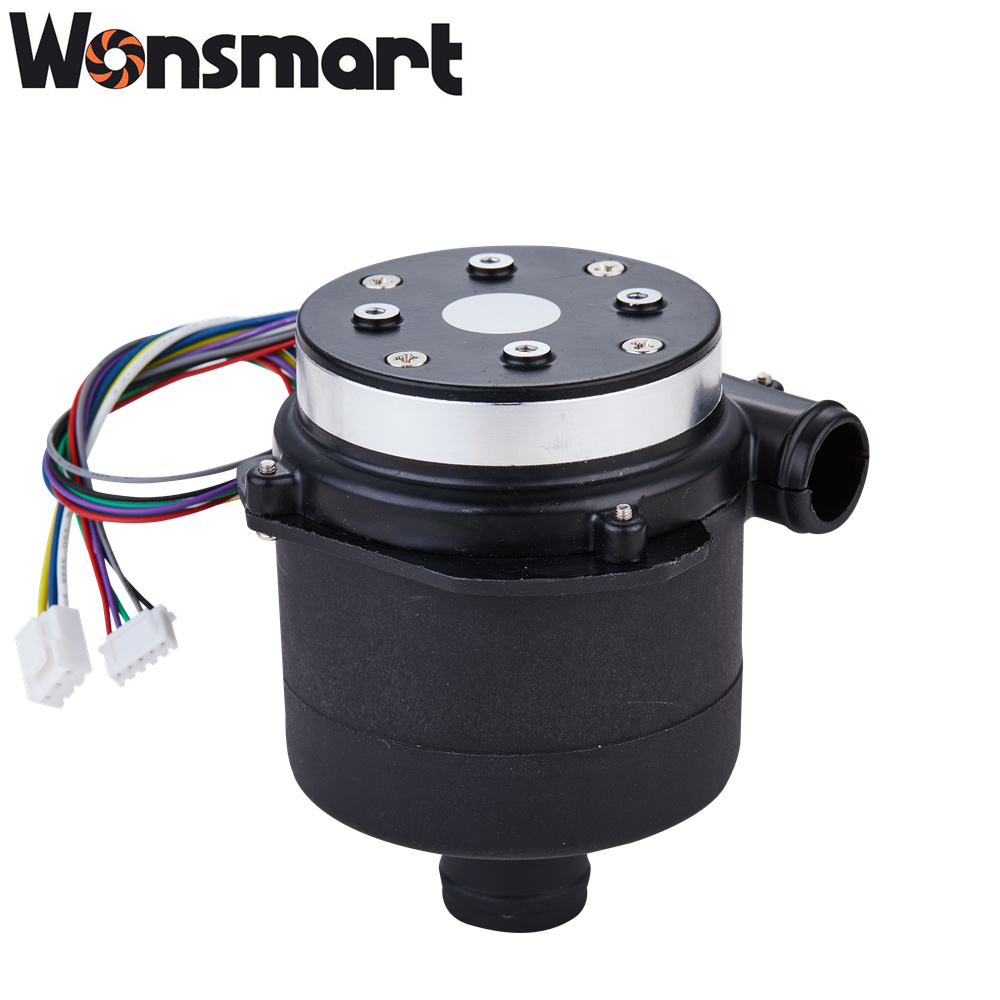

High Pressure ICU Ventilator DC Blower
WS9290B-24-220-X300
A cutting-edge ventilator blower designed for use in intensive care units with high patient requirements.
Quantity
| Brand name: Wonsmart | Certification: CE, RoHS, ETL,REACH |
| High Pressure ICU Ventilator DC Blower | Warranty: 1 Year |
| Blower type: Centrifugal fan | After-sales Service Provided: Online support |
| Voltage: 24 vdc | Life time(MTTF): >20,000hours (under 25 degree C) |
| Bearing: NMB ball bearing | Weight: 490 grams |

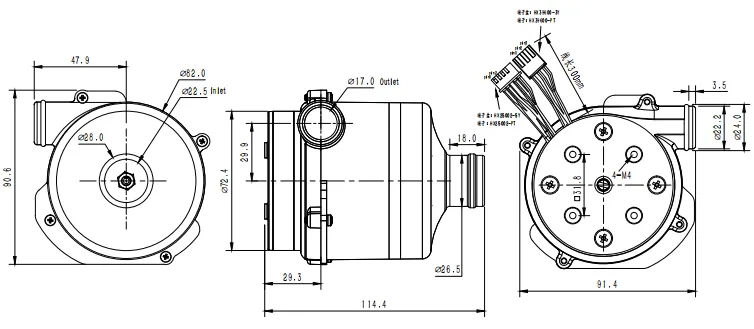

| Applicable Industries: Manufacturing Plant | Unit size: D92mm *H90mm |
| Electric Current Type: DC | Motor type:Three Phase DC Brushless Motor |
| Mounting: Ceiling Fan | Controller: external |
| Place of Origin:Zhejiang, China | Static pressure:14kPa |
 |  |
WS9290B-24-220-X300 blower can reach maximum55m³/h airflow at 0 kpa pressure and maximum14kpa static pressure.It has maximum output air power when this blower run at 7kPa resistance if we set 100% PWM, It has maximum efficiency when this blower run at 7kPa resistance if we set 100% PWM.Other load point performance refer to below P-Q curve:
(1)WS9290B-24-220-X300 blower is with brushless motors and NMB ball bearings inside which indicates very long life time; MTTF of this blower can reach more than 20,000hours at 20degree C environmental temperature.
(2)High Pressure DC Blower for 5kw fuel cell needs no maintence;
(3)High Pressure DC Blower for 5kw fuel cell drived by a brushless motor controller have many different control functions such as speed regulation,speed pulse output,fast acceleration, brake etc.it can be controlled by intelligent machine and equipment easily.
(4) Drived by brushless motor driver the blower will have over current, under/over voltage,stall protections.
The High Pressure DC Blower is the ideal solution for hospitals and clinics with critically ill patients. This High Pressure DC Blower provides high-pressure ventilation to help patients breathe easier. With its sturdy construction, it ensures long-lasting durability and reliability. Users can adjust the settings based on the patient's needs, while the built-in safety features guarantee peace of mind. Whether it's for patients with respiratory failure, acute lung injury, or other critical illnesses, this blower can be the life-saving device needed. It's easy to use, quiet, and an essential tool for medical professionals.
