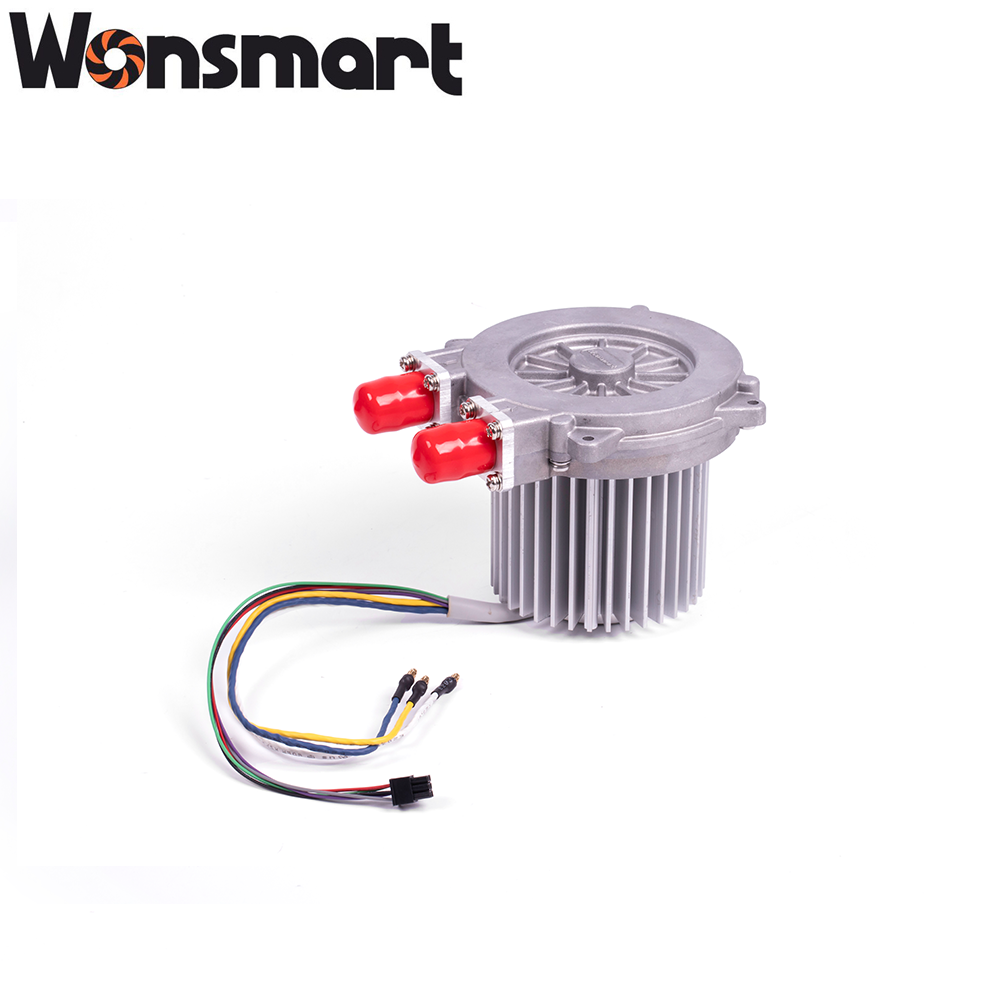

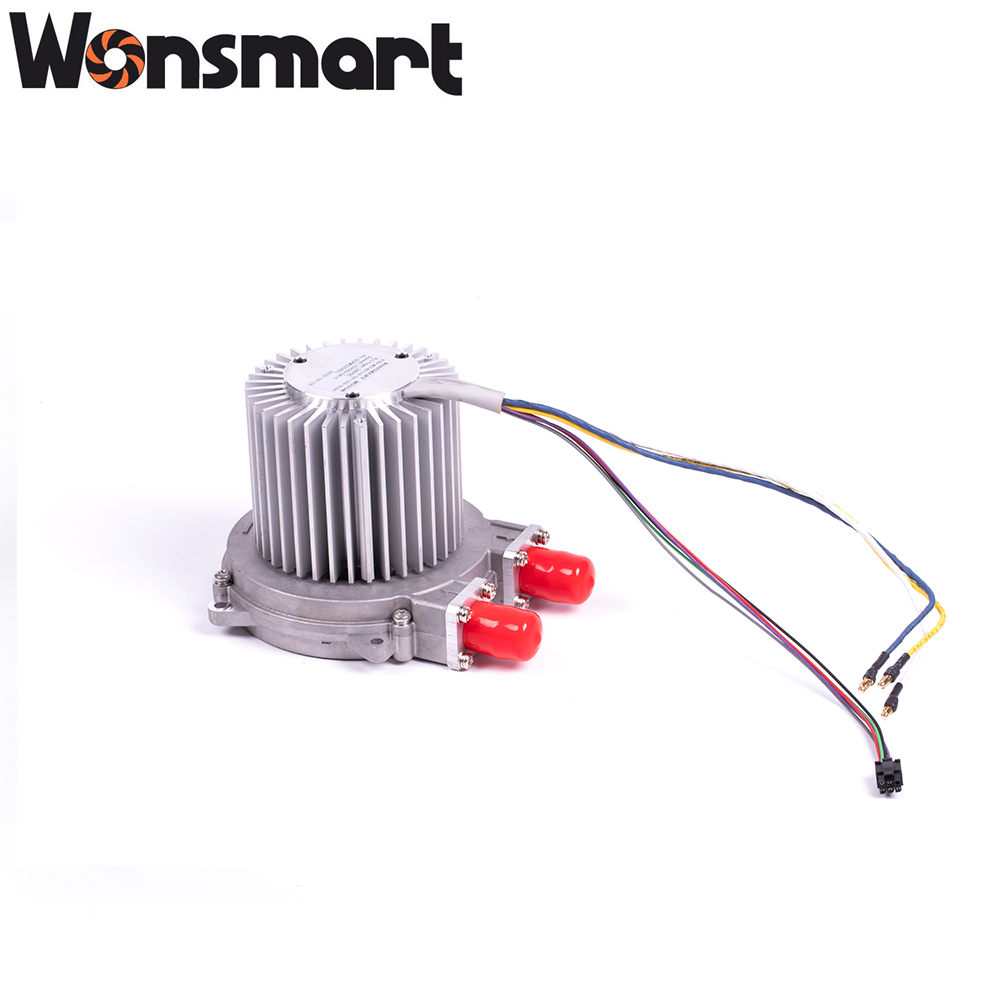

mini turbo blower for 10kw fuel cell blower
WS145110-48-150-X300
Compact and efficient blower for 10kW fuel cell systems. Ideal for space-constrained installation and high-pressure operation.
Quantity
| Brand name: Wonsmart | Certification: ce, RoHS, ETL |
| High pressure with dc brushless motor | Warranty: 1 Year |
| Blower type: Centrifugal fan | After-sales Service Provided: Online support |
| Voltage: 48 vdc | Life time(MTTF): >20,000hours (under 25 degree C) |
| Bearing: NMB ball bearing | Weight: 1.5 KG |
| Type: Centrifugal Fan | Housing material:PC |
| Applicable Industries: Manufacturing Plant | Unit size: D145mm *H110mm |
| Electric Current Type: DC | Motor type:Three Phase DC Brushless Motor |
| Mounting: Ceiling Fan | Controller: external |
| Place of Origin:Zhejiang, China | Static pressure: 32kPa |
 |  |

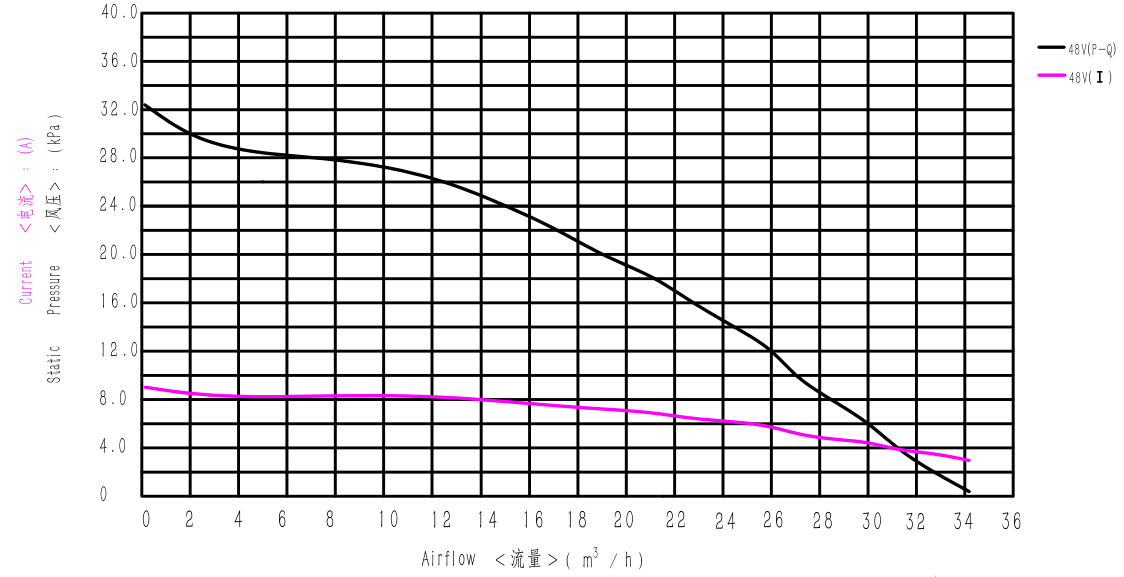

WS145110-48-150-X300 mini turbo blower can reach maximum 33m3/h airflow at 0 kpa pressure and maximum 32kpa static pressure. It has maximum output air power when this blower run at 3kPa resistance if we set 100% PWM. It has maximum efficiency when this blower run at 32kPa resistance if we set 100% PWM. Other load point performance refer to below P-Q curve：
(1)WS145110-48-150-X300 blower is with brushless motors and NMB ball bearings inside which indicates very long life time; MTTF of this blower can reach more than 20,000 hours at 20 degree C environmental temperature.
(2)This mini turbo blower needs no maintence
(3)This mini turbo blower drived by a brushless motor controller have many different control functions such as speed regulation,speed pulse output,fast acceleration, brake etc.it can be controlled by intelligent machine and equipment easily
(4)Drived by brushless motor driver the blower will have over current, under/over voltage,stall protections.
This mini turbo blower is a key component of 10kW fuel cell systems, delivering the required air supply for combustion and power generation with high efficiency and stability. With compact and lightweight design, this blower saves space and energy while maintaining high performance and reliability. The robust construction and advanced control system ensure the blower operates smoothly and quietly, reducing noise and vibration for better user experience. Suitable for various fuel cell applications, this blower solves the challenges of air supply and enables users to achieve optimal fuel cell performance and efficiency.
