24V DC Brushless Blower Air Bed Blower
WS7040AL-24-V200
Efficient and powerful blower with a brushless motor that runs quietly. Designed for inflating airbeds, swimming pool toys, and more products.
Quantity
| Brand name: Wonsmart | Certification: CE, RoHS, ETL,REACH |
| High pressure with dc brushless motor | Warranty: 1 Year |
| Blower type: Centrifugal fan | After-sales Service Provided: Online support |
| Voltage: 24 vdc | Life time(MTTF): >20,000hours (under 25 degree C) |
| Bearing: NMB ball bearing | Weight: 80 grams |
| Type: Centrifugal Fan | Housing material:PC |
| Applicable Industries: Manufacturing Plant | Unit size: D70mm *H40mm |
| Electric Current Type: DC | Motor type:Three Phase DC Brushless Motor |
| Mounting: Ceiling Fan | Controller: external |
| Place of Origin:Zhejiang, China | Static pressure: 6.0kPa |
 |  |

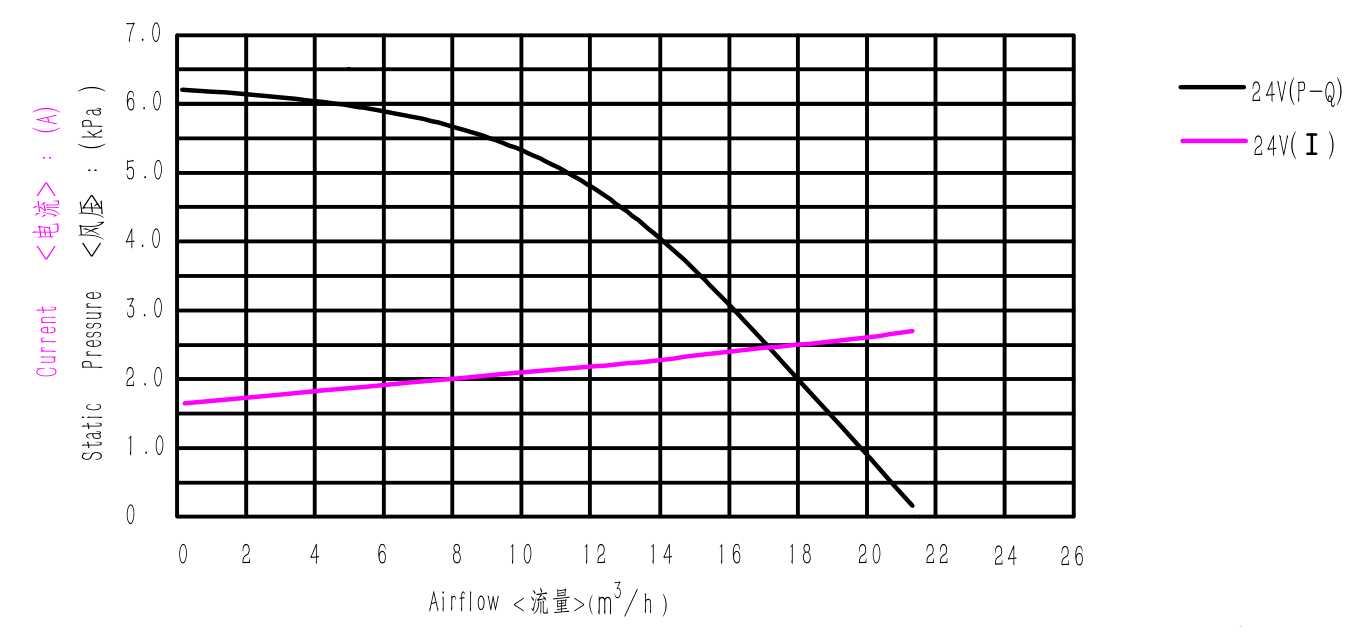

WS7040AL-24-V200 blower can reach maximum 21m³/h airflow at 0 kpa pressure and maximum 6kpa static pressure. It has maximum output air power when this blower run at 3kPa resistance if we set 100% PWM. It has maximum efficiency when this blower run at 6kPa resistance if we set 100% PWM. Other load point performance refer to below P-Q curve：
(1)WS7040-12-X200 blower is with brushless motors and NMB ball bearings inside which indicates very long life time; MTTF of this blower can reach more than 20,000 hours at 20 degree C environmental temperature.
(2)This high pressure blower needs no maintence
(3)This high pressure blower drived by a brushless motor controller have many different control functions such as speed regulation,speed pulse output,fast acceleration, brake etc.it can be controlled by intelligent machine and equipment easily
(4)Drived by brushless motor driver the blower will have over current, under/over voltage,stall protections.
The 24V DC Brushless Blower Air Bed Blower offers a powerful and efficient solution to inflating products without the loud noise of traditional blowers. The high pressure blower technology creates a smooth and consistent airflow, allowing for faster inflation times. High pressure blower's compact and lightweight design makes it easy to transport and store. Ideal for inflating airbeds, swimming pool toys, and more. The blower is also energy efficient, helping to reduce electricity costs. With its precision control, users can easily regulate the air speed, ensuring optimal inflation without overinflating the product. This blower offers great convenience to users, solving the problem of lengthy and tiresome inflating of products manually, making it a must-have for everyone.
