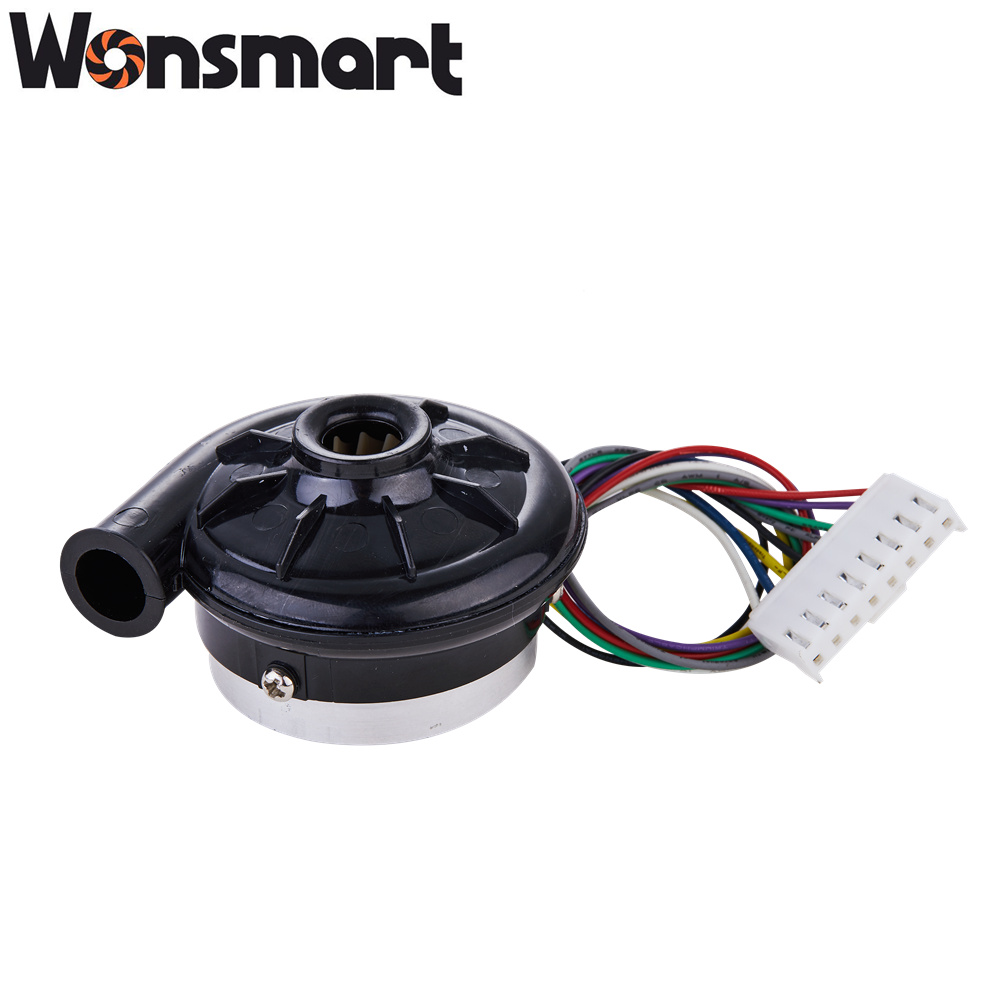

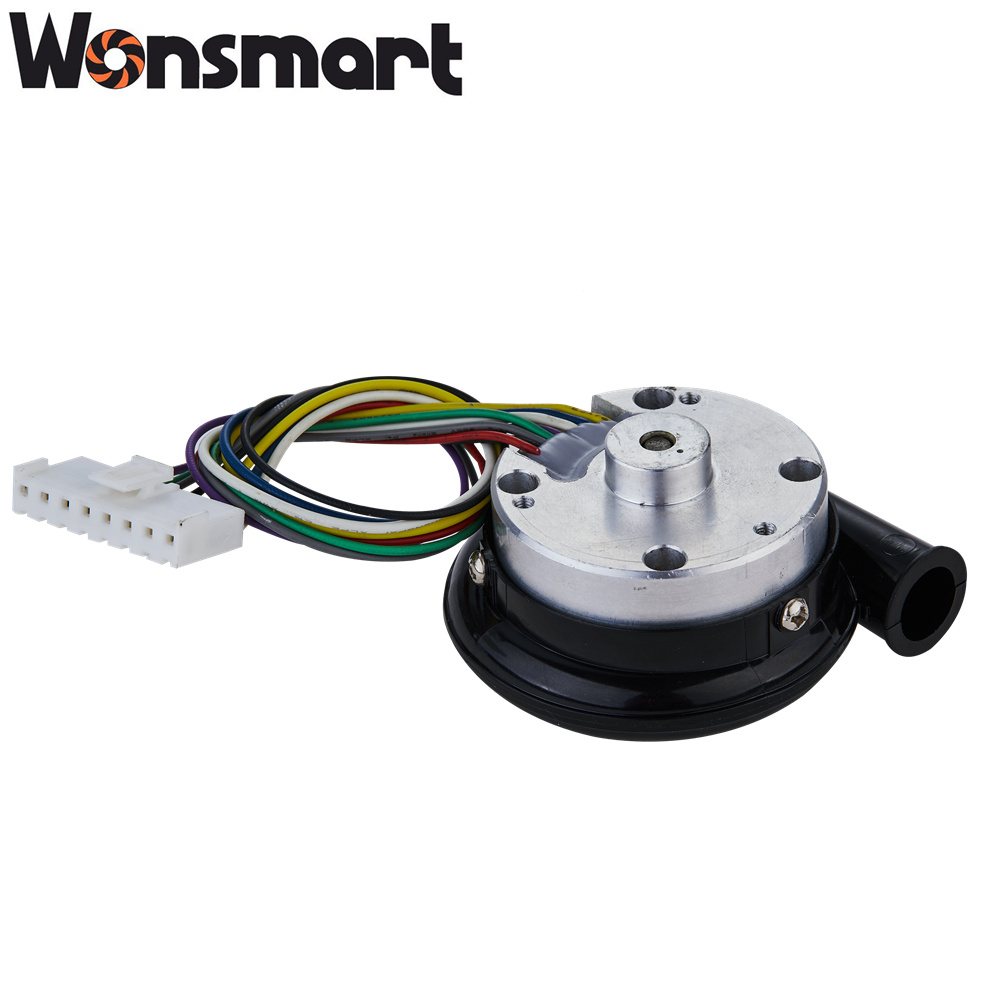

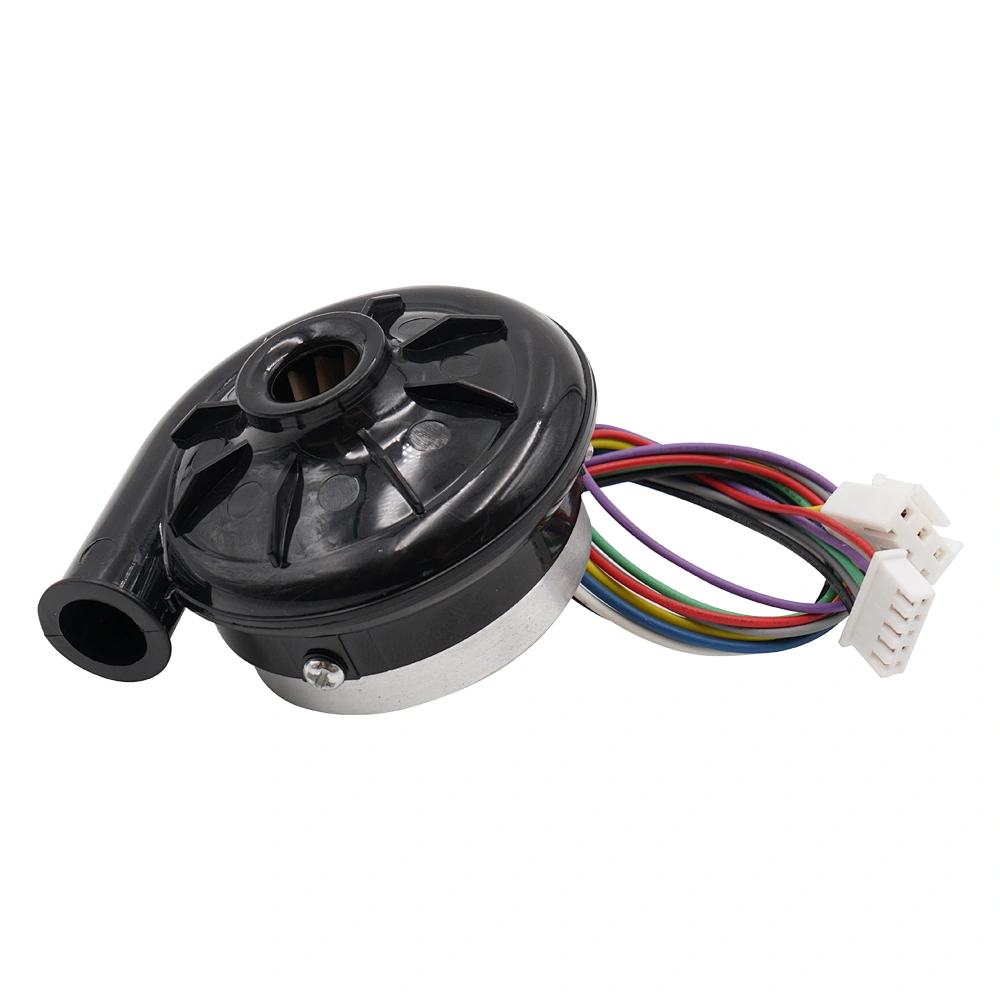

12VDC High Speed Blower
WS7040AL-12-X200
Efficient and powerful 12VDC blower, perfect for cooling electronic equipment, inflatable structures, and more.
Quantity
| Brand name: Wonsmart | Certification: CE, RoHS, ETL,REACH |
| 12VDC High Speed Blower | Warranty: 1 Year |
| Blower type: Centrifugal fan | After-sales Service Provided: Online support |
| Voltage: 12 vdc | Life time(MTTF): >20,000hours (under 25 degree C) |
| Bearing: NMB ball bearing | Weight: 80 grams |
| Type: Centrifugal Fan | Housing material:PC |
| Applicable Industries: Manufacturing Plant | Unit size: D70mm *H40mm |
| Electric Current Type: DC | Motor type:Three Phase DC Brushless Motor |
| Mounting: Ceiling Fan | Controller: external |
| Place of Origin:Zhejiang, China | Static pressure: 5.5kPa |
 |  |

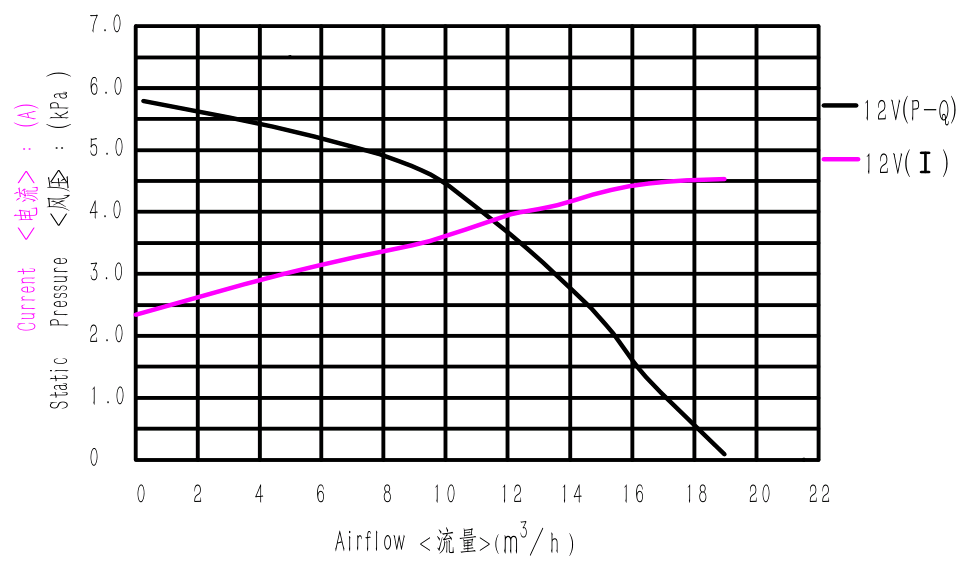

WS7040AL-12-X200 high speed blower can reach maximum 19m³/h airflow at 0 kpa pressure and maximum 5.5kpa static pressure. It has maximum output air power when this blower run at 3kPa resistance if we set 100% PWM. It has maximum efficiency when this blower run at 5.5kPa resistance if we set 100% PWM. Other load point performance refer to below P-Q curve：
(1)WS7040AL-12-X200 blower is with brushless motors and NMB ball bearings inside which indicates very long life time; MTTF of this blower can reach more than 20,000 hours at 20 degree C environmental temperature.
(2)This high speed blower needs no maintence
(3)This high speed blower drived by a brushless motor controller have many different control functions such as speed regulation,speed pulse output,fast acceleration, brake etc.it can be controlled by intelligent machine and equipment easily
(4)Drived by brushless motor driver the blower will have over current, under/over voltage,stall protections.
The 12VDC High Speed Blower is an essential tool for anyone in need of reliable and efficient cooling. With a high-speed motor that can deliver up to 34,000 RPM, this blower can quickly cool electronic components, inflatable structures, and other equipment. It features a compact and lightweight design that makes it easy to transport and use in a variety of settings. The blower is also built to last, with durable materials and a long-lasting motor that can handle even the toughest jobs. With its high-speed performance and versatile use cases, the 12VDC High Speed Blower is an indispensable tool for anyone looking for powerful and reliable cooling solutions.
