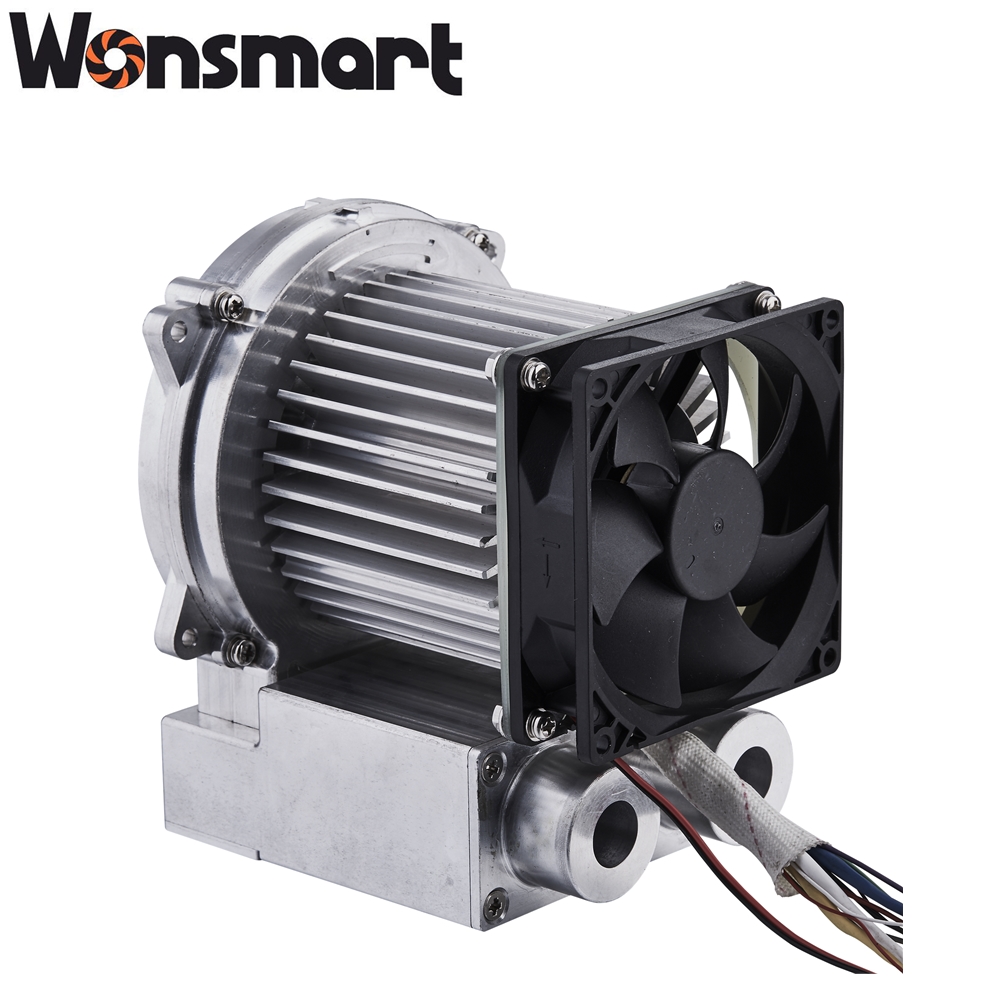

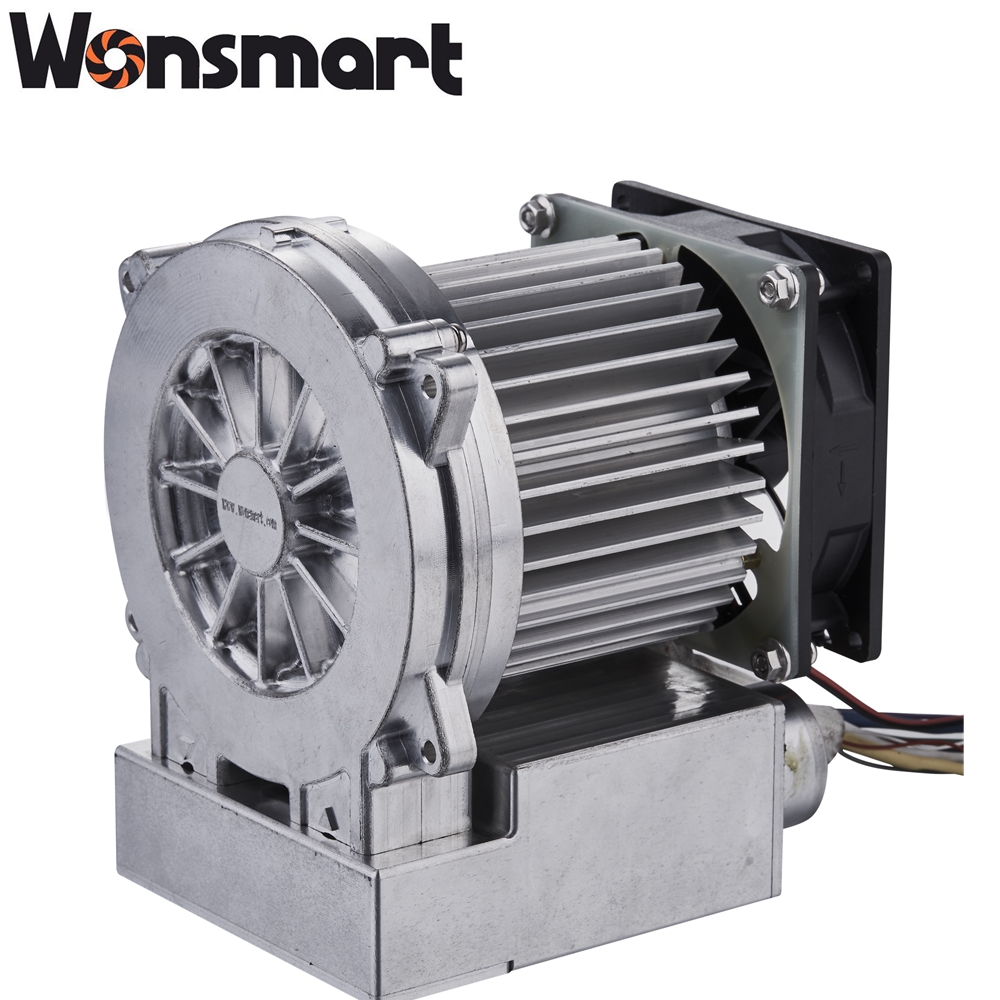

High pressure 48VDC ring blower
WS145110-48-150-X300
This powerful ring blower delivers high pressure airflow to efficiently move materials, cool equipment, and meet various industrial needs.
Quantity
| Brand name: Wonsmart | Certification: ce, RoHS, ETL,REACH |
| High pressure air blower with dc brushless motor | Warranty: 1 Year |
| Blower type: Centrifugal fan | After-sales Service Provided: Online support |
| Voltage: 48 vdc | Life time(MTTF): >20,000hours (under 25 degree C) |
| Bearing: NMB ball bearing | Weight: 1.5 KG |
| Type: Centrifugal Fan | Housing material:PC |
| Applicable Industries: Manufacturing Plant | Unit size: D145mm *H110mm |
| Electric Current Type: DC | Motor type:Three Phase DC Brushless Motor |
| Mounting: Ceiling Fan | Controller: external |
| Place of Origin:Zhejiang, China | Static pressure: 32kPa |
 |  |

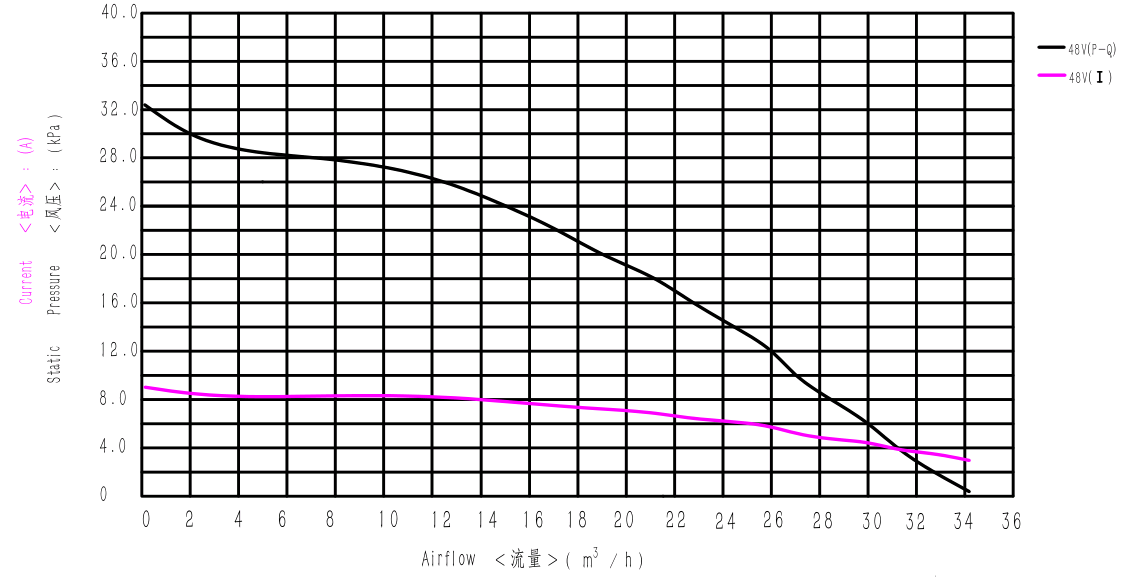

WS145110-48-150-X300 blower can reach maximum 33m3/h airflow at 0 kpa pressure and maximum 32kpa static pressure. It has maximum output air power when this blower run at 3kPa resistance if we set 100% PWM. It has maximum efficiency when this blower run at 32kPa resistance if we set 100% PWM. Other load point performance refer to below P-Q curve：
(1)WS145110-48-150-X300 blower is with brushless motors and NMB ball bearings inside which indicates very long life time; MTTF of this blower can reach more than 20,000 hours at 20 degree C environmental temperature.
(2)This high pressure air blower needs no maintence
(3)This high pressure air blower drived by a brushless motor controller have many different control functions such as speed regulation,speed pulse output,fast acceleration, brake etc.it can be controlled by intelligent machine and equipment easily
(4)Drived by brushless motor driver the blower will have over current, under/over voltage,stall protections.
With a 48VDC motor, this high pressure air blower is perfect for providing high pressure airflow for industrial applications. Its durable construction, high-quality bearings, and efficient motor ensure reliability and longevity. The high pressure air blower is highly versatile, capable of handling various gases and materials. It can be used for ventilation, air circulation, material handling, cooling, and more. The blower is compact and can be integrated into existing systems easily. It provides an effective solution for industrial air handling needs such as dust and fume extraction, machine cooling, vacuum transfer, and more. Invest in this ring blower for cost-effective and efficient air handling in your industrial setting.
