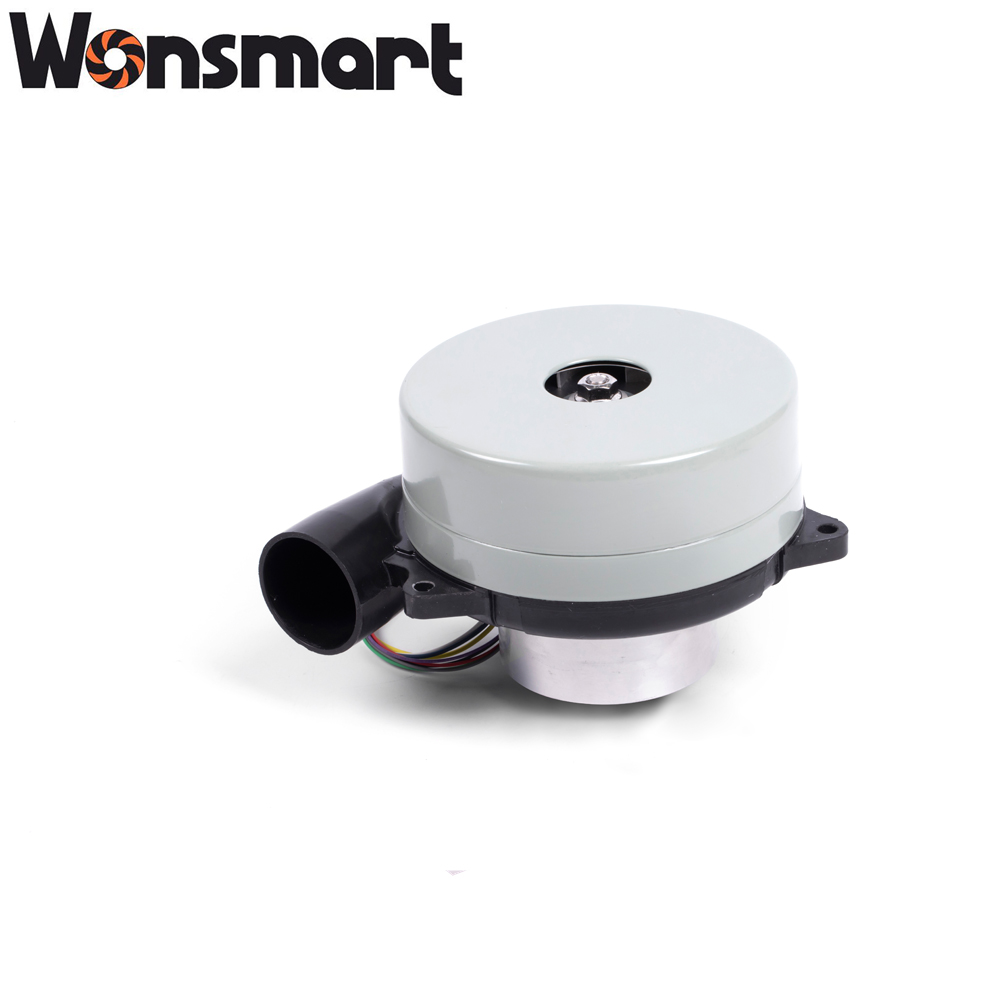

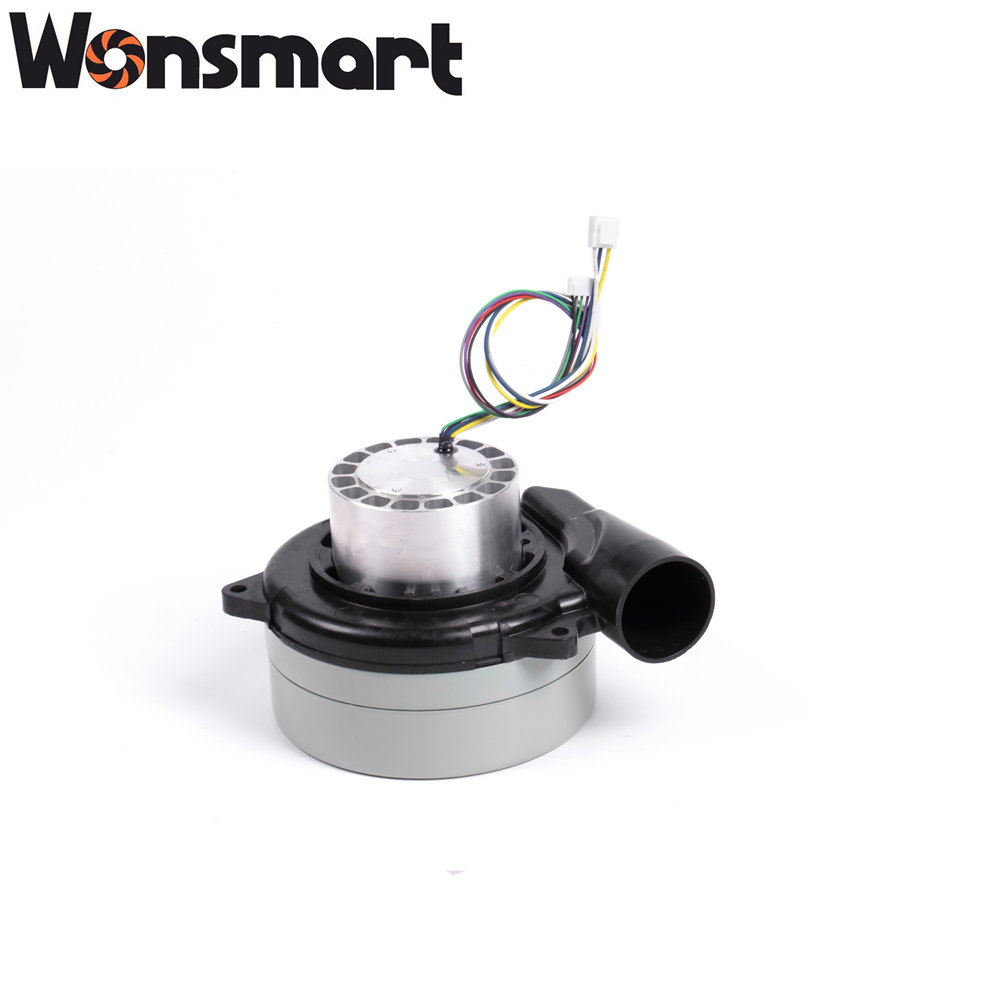

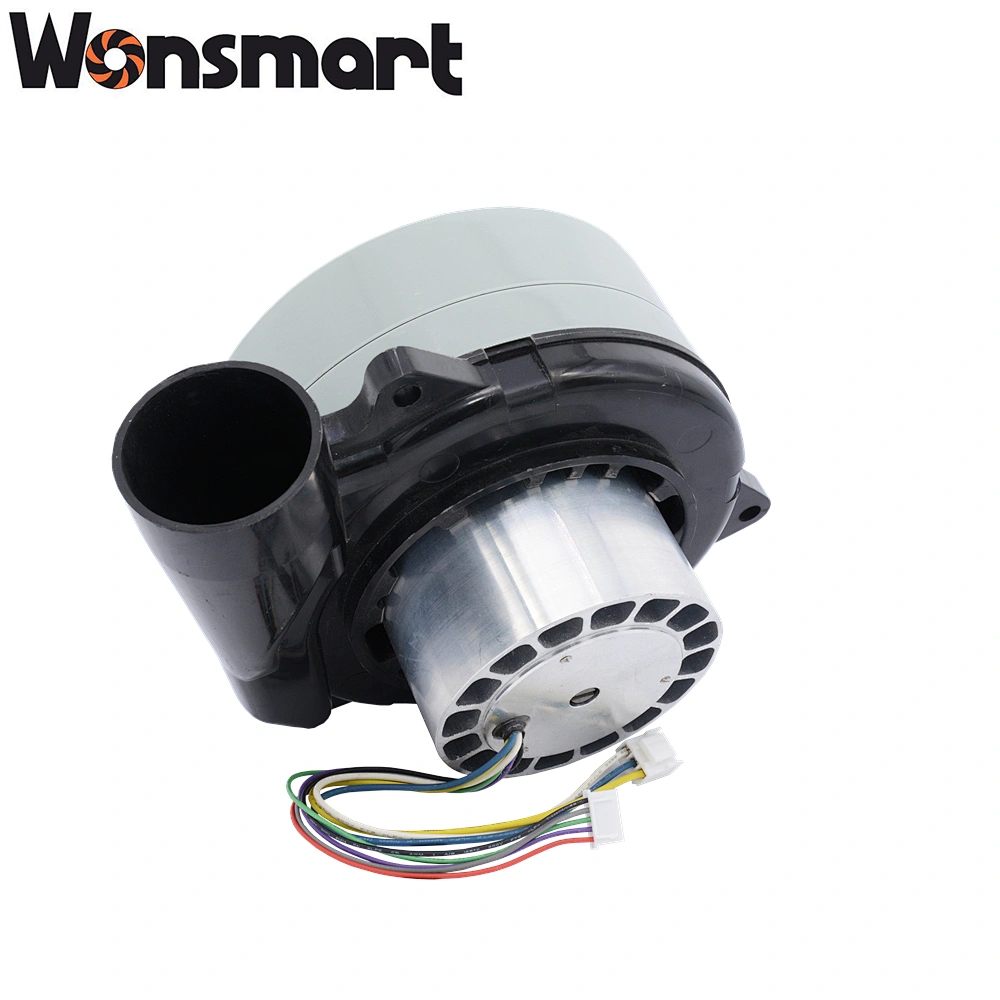

compact size cooling blower
WS140120-48-130-X300
Keep your electronic devices running smoothly with our compact size cooling blower. Efficient, quiet, and easy to install.
Quantity
| Brand name: Wonsmart | Certification: ce, RoHS, ETL,REACH |
| compact size cooling blower | Warranty: 1 Year |
| Blower type: Centrifugal fan | After-sales Service Provided: Online support |
| Voltage: 48 vdc | Life time(MTTF): >20,000hours (under 25 degree C) |
| Bearing: NMB ball bearing | Weight: 1.5 KG |
| Type: Centrifugal Fan | Housing material:PC |
| Applicable Industries: Manufacturing Plant | Unit size: D140mm *H120mm |
| Electric Current Type: DC | Motor type:Three Phase DC Brushless Motor |
| Mounting: Ceiling Fan | Controller: external |
| Place of Origin:Zhejiang, China | Static pressure: 12kPa |
 |  |
WS140120-48-130-X300 blower can reach maximum 18m3/h airflow at 0 kpa pressure and maximum 12kpa static pressure. It has maximum output air power when this blower run at 3kPa resistance if we set 100% PWM. It has maximum efficiency when this blower run at 12kPa resistance if we set 100% PWM. Other load point performance refer to below P-Q curve：
(1)WS140120-48-130-X300 blower is with brushless motors and NMB ball bearings inside which indicates very long life time; MTTF of this blower can reach more than 20,000 hours at 20 degree C environmental temperature.
(2)This cooling blower needs no maintence
(3)This cooling blower drived by a brushless motor controller have many different control functions such as speed regulation,speed pulse output,fast acceleration, brake etc.it can be controlled by intelligent machine and equipment easily
(4)Drived by brushless motor driver the blower will have over current, under/over voltage,stall protections.
Say goodbye to overheating devices with our efficient and powerful compact size cooling blower. Our blower is designed to effectively cool electronic components, while remaining quiet and energy-efficient. The easy-to-install design makes it ideal for a variety of applications, including gaming consoles, computers, and more. With its compact size, it can fit into even the tightest spaces. Keep your devices running smoothly and prevent damage caused by overheating with our cooling blower.
