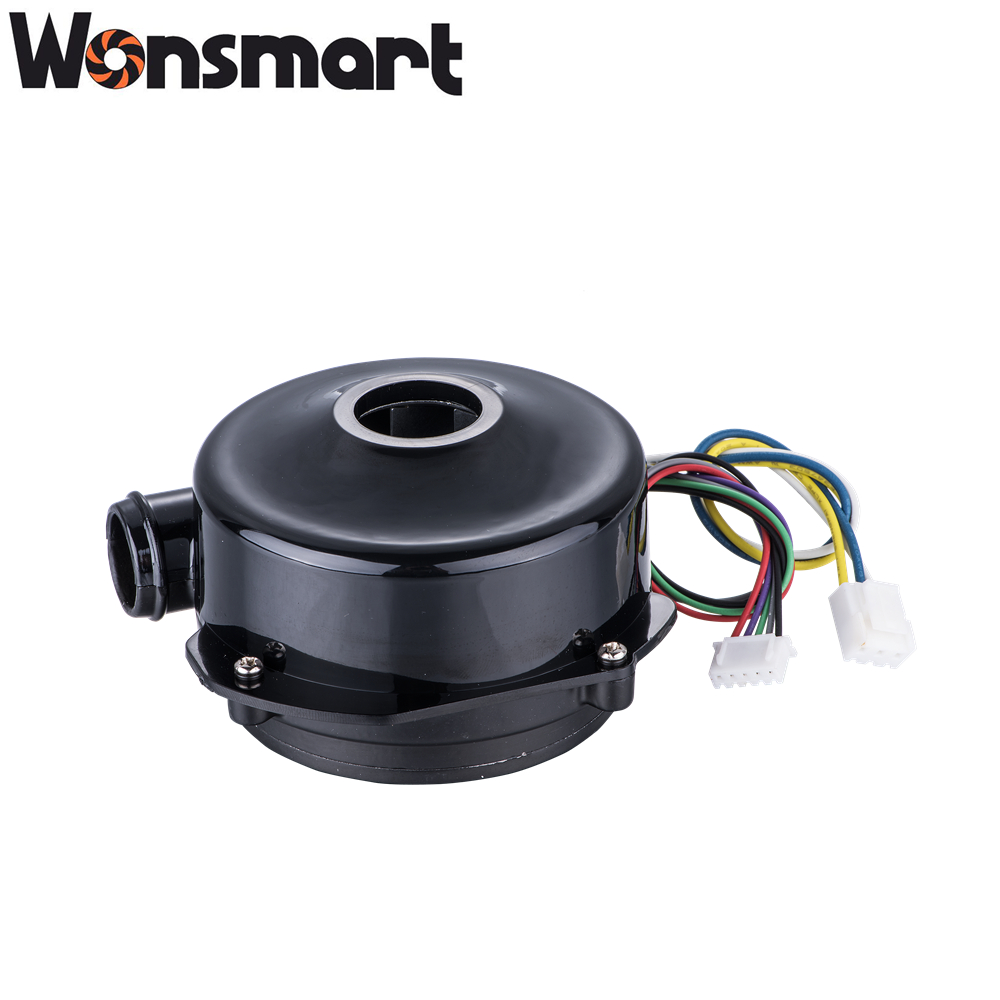

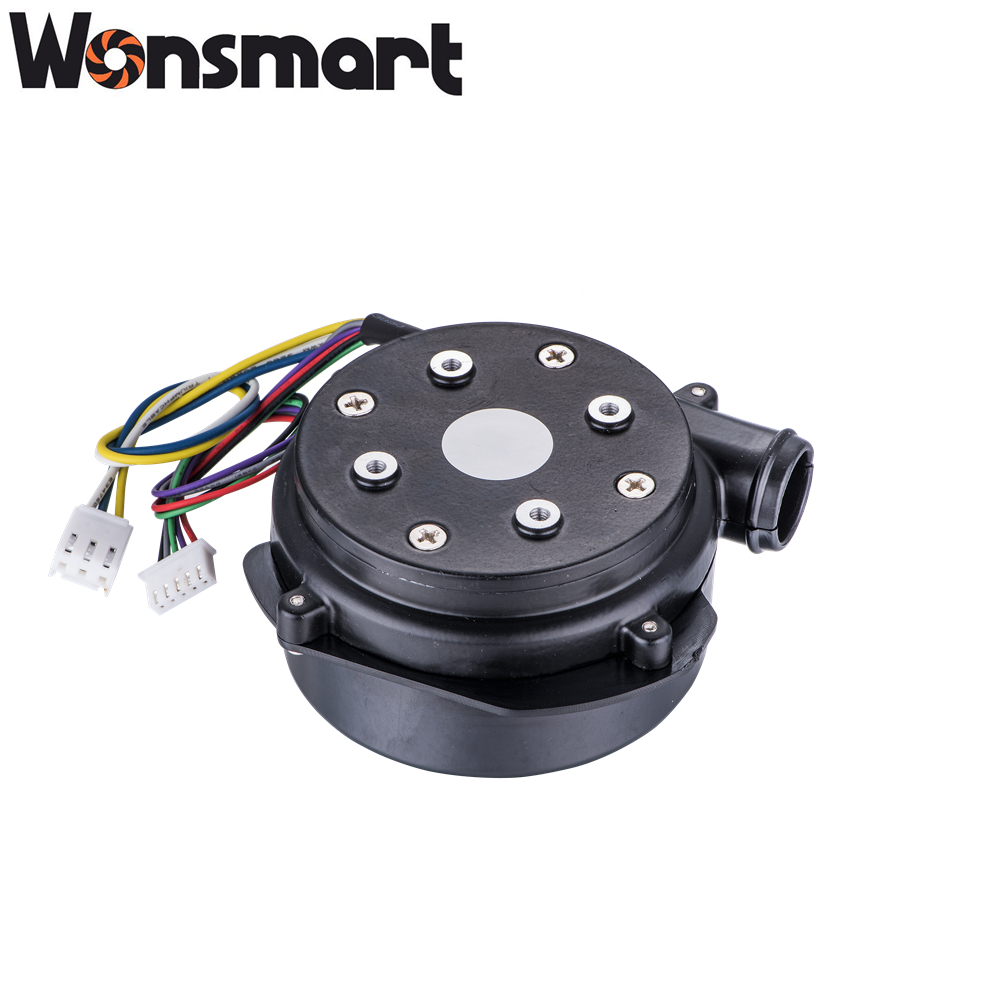

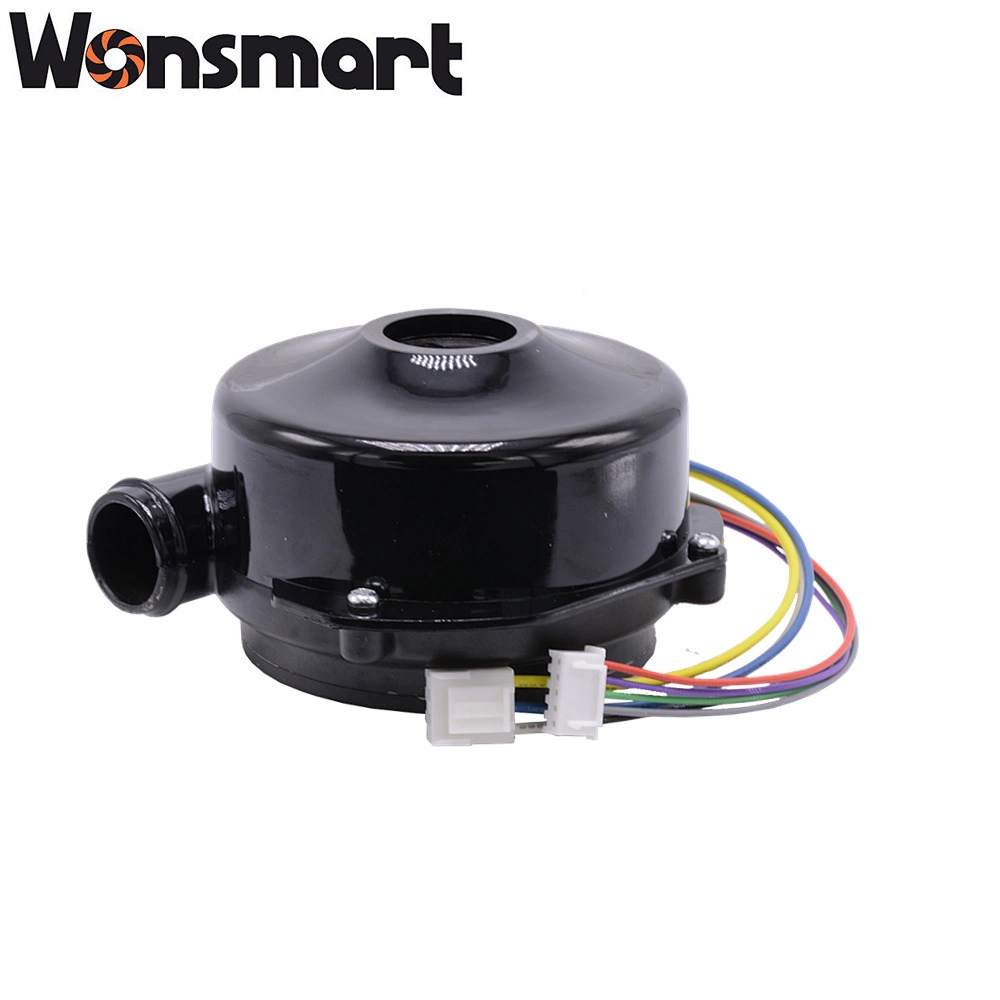

Small Air Centrifugal Side Channel Blower
WS9250-24-240-X200
A compact and efficient blower for small spaces and ventilation systems, offering high pressure and low noise.
Quantity
| Brand name: Wonsmart | Certification: ce, RoHS, ETL |
| High pressure with dc brushless motor | Warranty: 1 Year |
| Blower type: Centrifugal fan | After-sales Service Provided: Online support |
| Voltage: 24 vdc | Life time(MTTF): >20,000hours (under 25 degree C) |
| Bearing: NMB ball bearing | Weight: 420 grams |
| Type: Centrifugal Fan | Housing material:PC |

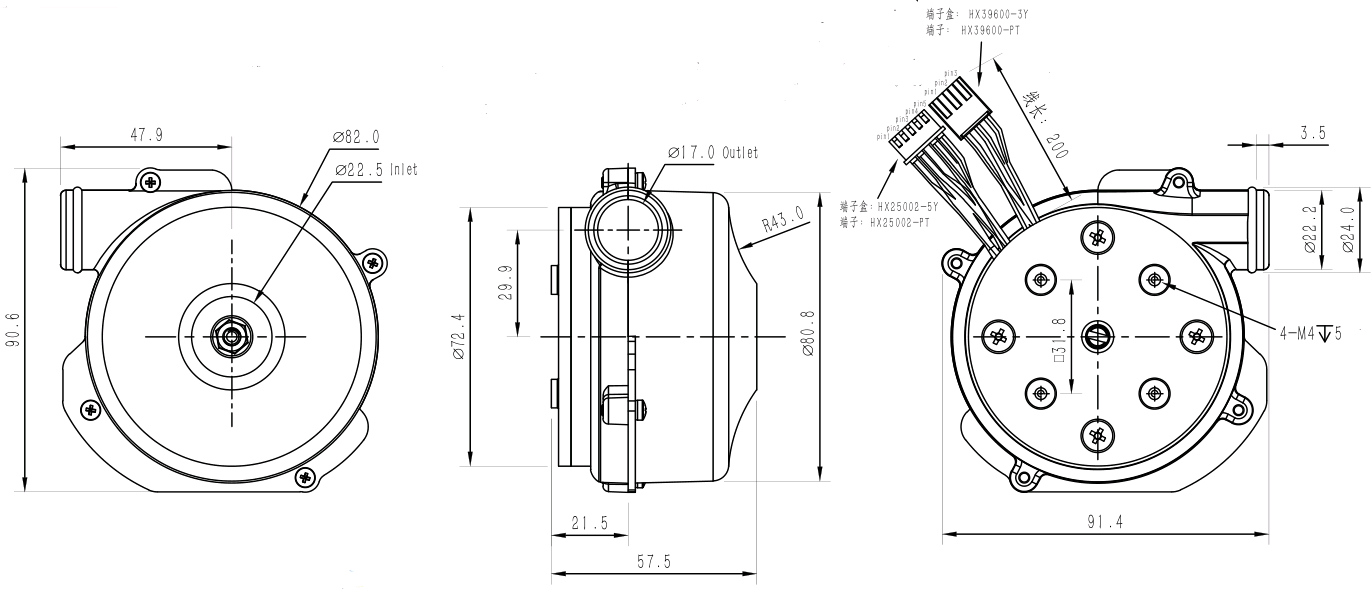

| Applicable Industries: Manufacturing Plant | Unit size: D92mm *H50mm |
| Electric Current Type: DC | Motor type:Three Phase DC Brushless Motor |
| Mounting: Ceiling Fan | Controller: external |
| Place of Origin:Zhejiang, China | Static pressure: 8.5kPa |
 |  |

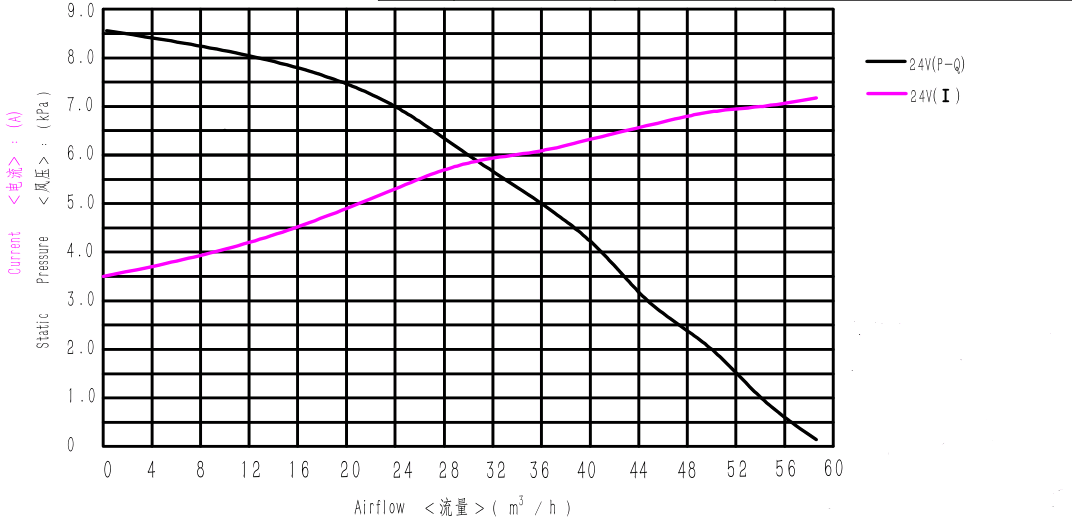

WS9250-24-240-X200 blower can reach maximum 57m³/h airflow at 0 kpa pressure and maximum 8.5kpa static pressure. It has maximum output air power when this blower run at 3kPa resistance if we set 100% PWM. It has maximum efficiency when this blower run at 8.5kPa resistance if we set 100% PWM. Other load point performance refer to below P-Q curve：
(1)WS9250-24-240-X200 blower is with brushless motors and NMB ball bearings inside which indicates very long life time; MTTF of this blower can reach more than 20,000 hours at 20 degree C environmental temperature.
(2)This small size centrifugal air blower needs no maintence
(3)This small size centrifugal air blower drived by a brushless motor controller have many different control functions such as speed regulation,speed pulse output,fast acceleration, brake etc.it can be controlled by intelligent machine and equipment easily
(4)Drived by brushless motor driver the blower will have over current, under/over voltage,stall protections.
Our Small Air Centrifugal Side Channel Blower is perfect for various applications, such as HVAC systems, industrial vacuum cleaners, and pneumatic conveying. The small size centrifugal air blower is made of high-quality aluminum, is oil-free, and boasts a motor with high-efficiency and low vibration. With a maximum airflow of 57m³/h and maximum pressure of 8.5kPa, it can easily handle air or gas in any situation. Also, small size centrifugal air blower's low noise level of 59dB(A)-73dB(A) makes it an excellent choice for indoor spaces. The blower is compact and easy to install and maintain. Invest in our Small Air Centrifugal Side Channel Blower to address your ventilation needs!
