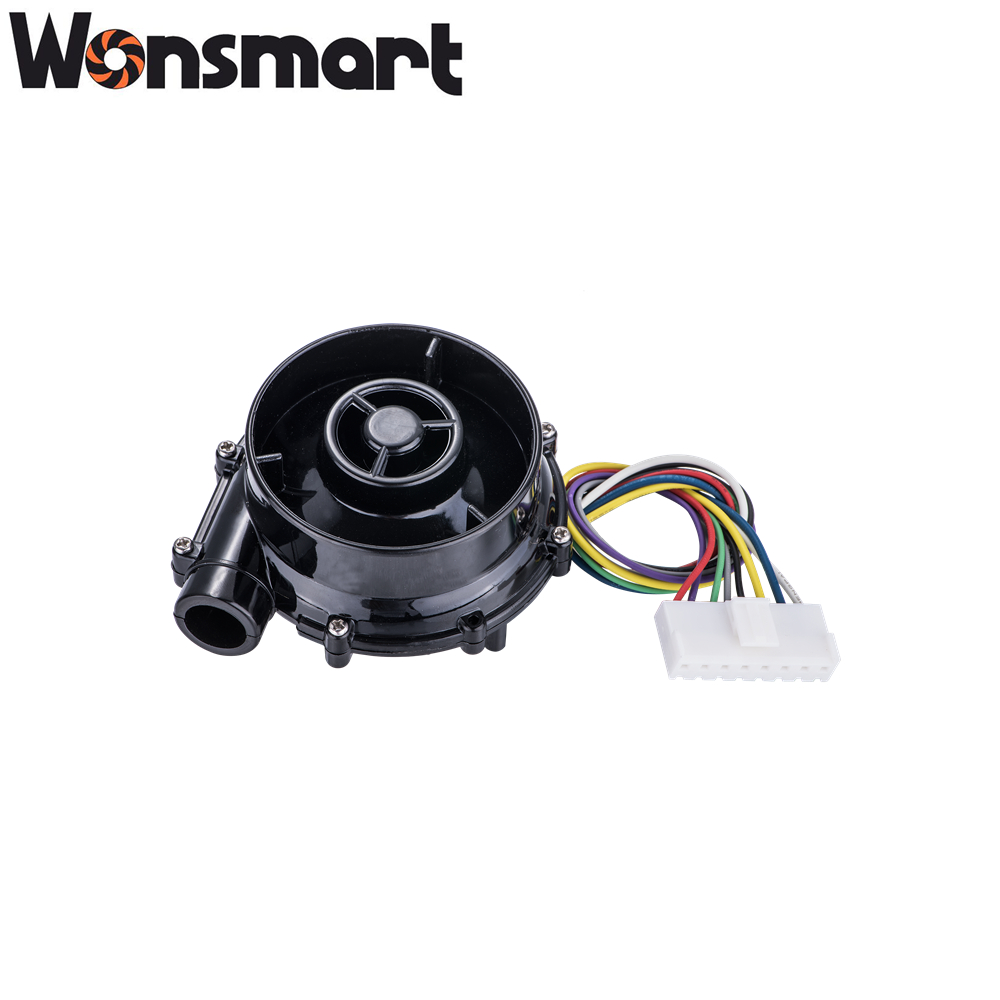

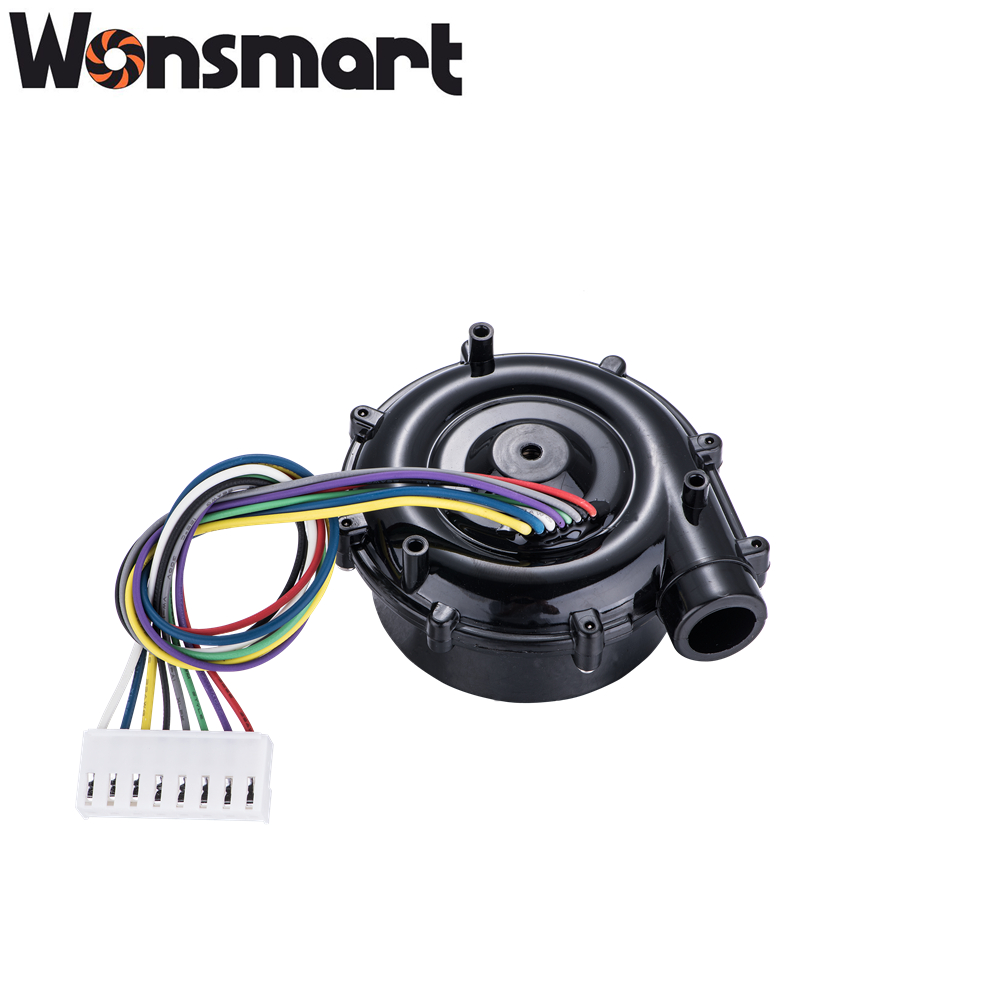

Wonsmart 24V BLDC Mini Air Blower
WS7040-24-V200
Wonsmart blower can be used on medical industrial, hompliance industry and Industry sector mini air blower
Quantity
wonsmart blower
| Brand name: Wonsmart | Certification: CE, RoHS, ETL,REACH |
| Wonsmart 24V BLDC Mini Air Blower | Warranty: 1 Year |
| Blower type: Centrifugal fan | After-sales Service Provided: Online support |
| Voltage: 24 vdc | Life time(MTTF): >20,000hours (under 25 degree C) |
| Bearing: NMB ball bearing | Weight: 78 grams |
| Type: Centrifugal Fan | Housing material:PC |

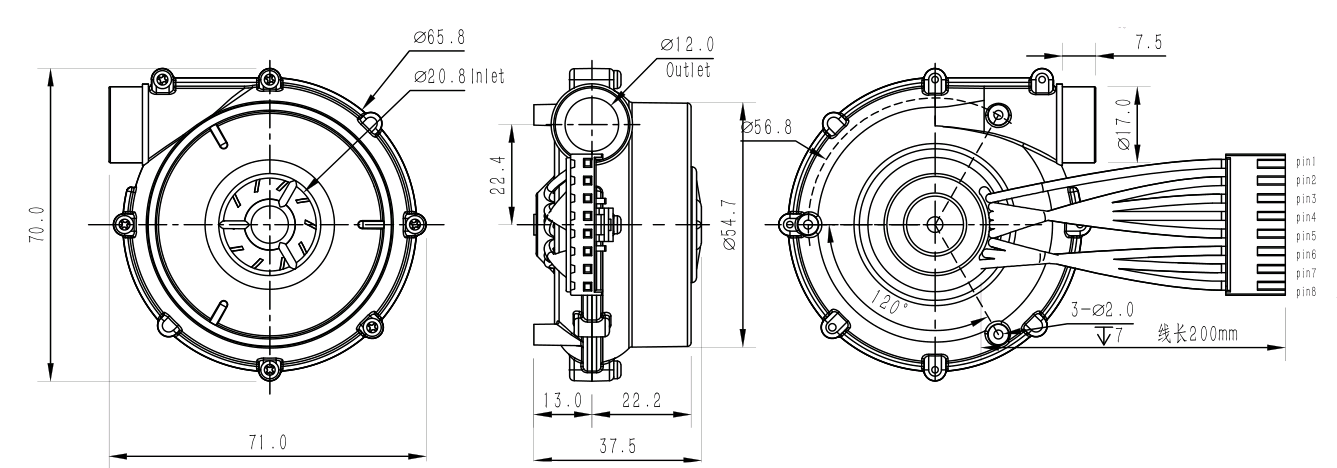

| Applicable Industries: Manufacturing Plant | Unit size: D70mm *H40mm |
| Electric Current Type: DC | Motor type:Three Phase DC Brushless Motor |
| Mounting: Ceiling Fan | Controller: external |
| Place of Origin:Zhejiang, China | Static pressure: 6.5kPa |
 |  |

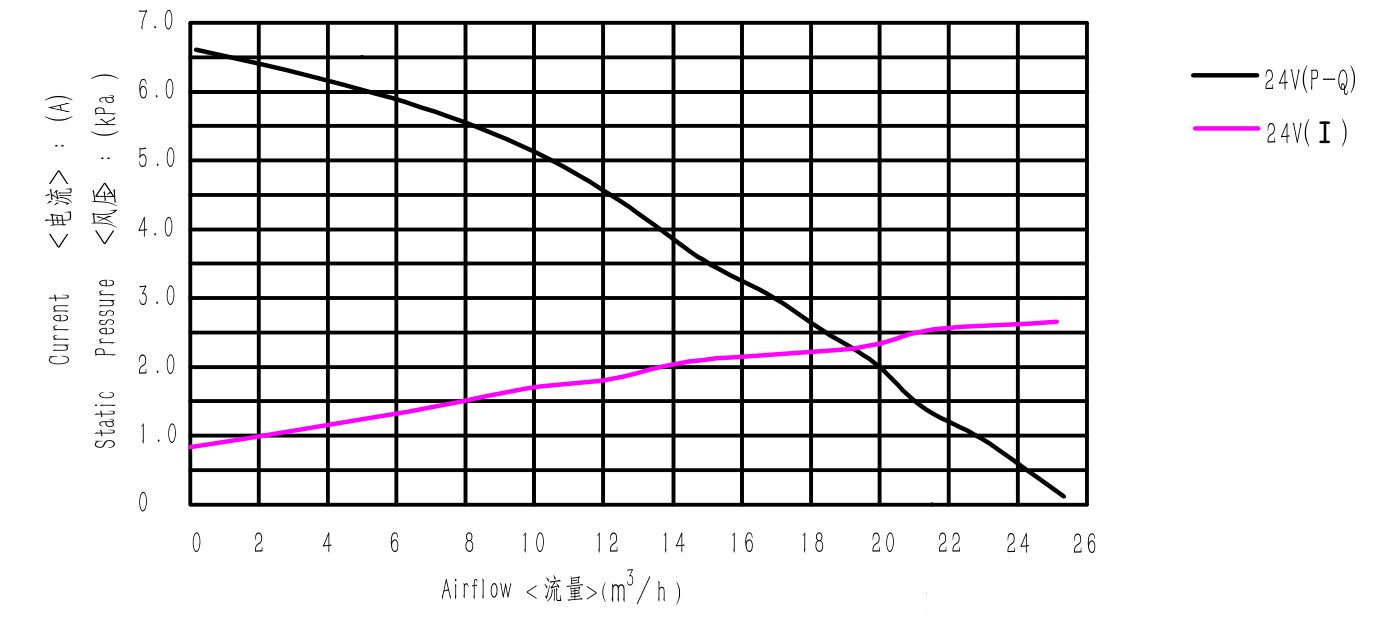

WS7040-24-V200 blower can reach maximum 25.5m³/h airflow at 0 kpa pressure and maximum 6.5kpa static pressure. wonsmart blower has maximum output air power when this blower run at 3kPa resistance if we set 100% PWM. It has maximum efficiency when this blower run at 6.5kPa resistance if we set 100% PWM. Other load point performance refer to below P-Q curve：
(1)WS7040-24-V200 blower is with brushless motors and NMB ball bearings inside which indicates very long life time; MTTF of this blower can reach more than 20,000 hours at 20 degree C environmental temperature.
(2)This brushless dc blower needs no maintence
(3)This brushless dc blower drived by a brushless motor controller have many different control functions such as speed regulation,speed pulse output,fast acceleration, brake etc.it can be controlled by intelligent machine and equipment easily
(4)Drived by brushless motor driver wonsmart blower will have over current, under/over voltage,stall protections.
The Wonsmart 24V BLDC Mini Air Blower has become essential for industries that require a reliable and energy-efficient solution for their air handling needs. Brushless dc blower's innovative technology has helped to reduce energy consumption and increase performance. This has resulted in significant cost savings for businesses using this device.
Moreover, the brushless dc blower is easy to install and maintain. Brushless dc blower has a long service life, making it a cost-effective solution for many businesses. The device is also environmentally friendly, with a low carbon footprint, making it an attractive option for companies looking to reduce their environmental impact.
Overall, Wonsmart 24V BLDC Mini Air Blower is a revolutionary technology that has transformed the industry with its advanced features and capabilities. The device has proven to be a reliable, cost-effective, and energy-efficient solution for a variety of applications. As technology continues to advance, we can expect to see even more innovative solutions from Wonsmart in the future.
